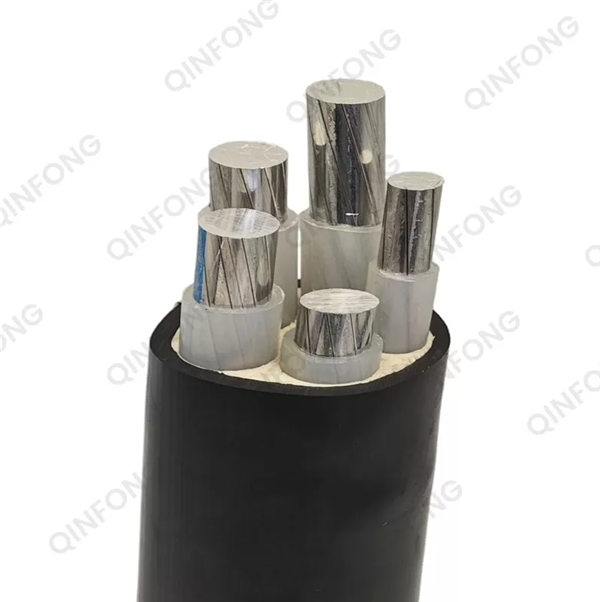

Aluminum Alloy Conductor Power Cable
The advantages of aluminum alloy power cables mainly include excellent safety performance, electrical conductivity, corrosion resistance, mechanical properties, connection performance and economic factors.
Conductor: Aluminum Alloy
Insulation material: Crosslinked Polyethylene
Insulation color: Natural Color or to be customized
Filling material: Non-hygroscopic Material
Inner sheath: PVC
Outer sheath: PVC/PE
Sheath color: Black
Applications:
Power sector
Industrial parks and plants
Buildings
Transportation
3+1-Core Aluminum Alloy Conductor XLPE Insulated PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section
Thickness of Insulation
Thickness of Sheath
Approx. Overall Diameter
Approx. Weight
Max. DC Resistance of Conductor (20℃)
Current Carrying Capacity（Ω/km）
(mm2)
(mm)
(mm)
(mm)
(kg/km)
（Ω/km）
In Air (A)
In Ground (A)
3×16+1×10
0.7/0.7
1.8
19.4
370
1.91/3.08
65
85
3×25+1×16
0.9/0.7
1.8
22.8
520
1.20/1.91
87
110
3×35+1×16
0.9/0.7
1.8
25.1
650
0.868/1.91
105
130
3×50+1×25
1.0/0.9
1.8
28.2
780
0.641/1.20
130
160
3×70+1×35
1.1/0.9
1.9
31.9
1050
0.443/0.868
165
195
3×95+1×50
1.1/1.0
2.1
35.7
1460
0.320/0.641
205
235
As an experienced Aluminum Alloy Cable Manufacturer, Qinfeng is committed to providing high-quality, flexible, and cost-effective cable solutions for every industry, we have the products and expertise to support your project’s needs. Our aluminum alloy cables are designed to meet the highest standards, offering superior performance, flexibility, and corrosion resistance. Inquire now for more information on our cables and how they can enhance your electrical systems.
