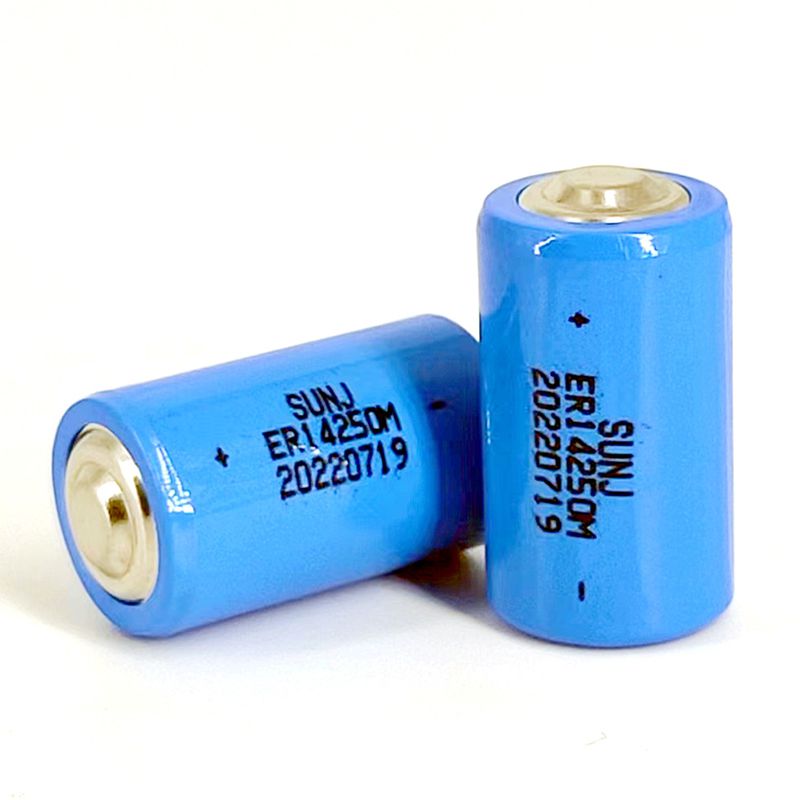

ER14250MLithium thionyl chloride high power battery
Product Type
Lithium thionyl chloride high power battery
Li-SOCL2 Battery Key Features
High and stable operating voltage
Long shelf life(Annual Self-discharge rate less than 1% at 25°C)
Long operating life
High energy density (450wh/kg)
Wide operating temperature range
Stainless steel container and end caps
Hermetic glass-to-metal sealing
Non-flammable electrolyte
Compliant with IEC60086-4 safety standard
Non-restricted for transport
Basic Parameters
Item
Subject
Features
Remark
Specification
ER14250M
coiling type, stainless steel shell, fully sealed structure
Norminal voltage
3.6V
Norminal capacity
800mAh
2mA, 25±3℃，cut-off at 2.0V
Max. continuous discharge current
100mA
Max. available pulse current
200mA
Operating temperature
-55℃~+80℃
When the operating temperature is higher than normal temperature, it may result in a decrease in the capacity at the beginning of the pulse and a low voltage reading. If the continuous temperature is higher than +40℃or lower than -20℃, please consult SUNJ
Dimension
φ14.5×25.5mm
See attached figure
Standard weight
About 10g
Annual self-discharge rate
≤1%
25±3℃，RH 65±10%
