F62 / F72 / F82 / F92 / F1018 concrete reinforcement mesh
Ribbed and Plain Steel Wire Reinforcement Mesh
Concrete reinforcement mesh is available in two main types:

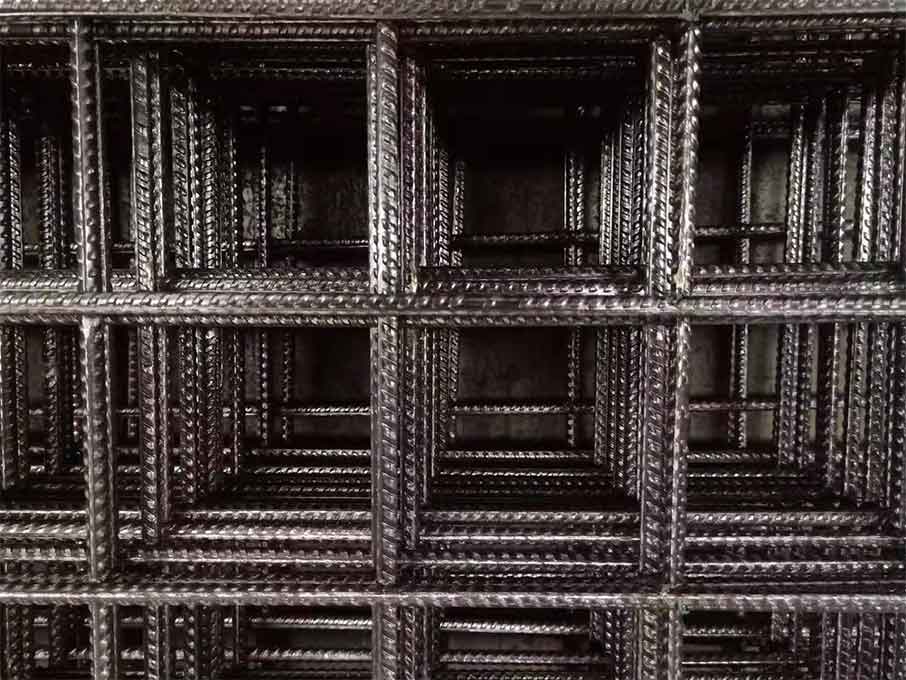

Ribbed Concrete Reinforcement Mesh: The wires have three-faced indentations (refer to the figure below), enhancing the bonding with concrete to prevent cracks.
Plain Steel Wire Concrete Reinforcement Mesh: Smooth surface wires, suitable for specific applications requiring less friction.
Concrete reinforcement mesh is always used on residential slabs and footing-construction and BCA complying with AS 2870, which is always paced in all reinforced conrete members to stop the concrete cracking.
Specifications: F62 / F72 / F82 / F92 / F1018 Reinforcing Mesh
The F62, F72, F82, F92, and F1018 mesh panels are traditional specifications widely used in concrete reinforcement. These specifications have been updated with the following modern equivalents:
F62 → SL62
F72 → SL72
F82 → SL82
F92 → SL92
F1018 → RL1018
For example, the F62 (now SL62) features 6mm wire bars welded in a 200mm square grid, with a panel size of 2.4m x 6m.The Tensile strength is 300Mpa.
The concrete reinforcement mesh specification as below:
Reinforcing Mesh
Code
wire diameter
aperture
edge open
width
length
weight per sheet(kgs)
F62
5mm
200*200mm
200mm
2.4m
6m
20.92
F72
6mm
200*200mm
200mm
2.4m
6m
30.12
F82
7mm
200*200mm
200mm
2.4m
6m
41
F92
8mm
200*200mm
200mm
2.4m
6m
53.55
Applications of Concrete Reinforcement Mesh
Residential Slabs and Footings: Essential for compliance with AS 2870, preventing cracking and ensuring long-term performance.
Reinforced Concrete Members: Used to enhance tensile strength and durability in construction projects.
Industrial and Commercial Applications: Ideal for large-scale infrastructure projects requiring high strength and reliability.
Benefits of Our Reinforcing Mesh
Crack Resistance: Reduces the risk of shrinkage and thermal cracks in concrete structures.
Ease of Installation: Prefabricated panels save time and reduce labor costs.
Long-Lasting Performance: Manufactured to strict quality standards for durability and reliability.
Why Choose Heyou Wire Mesh?
With years of experience in providing reinforcing mesh solutions, we are dedicated to delivering products that meet and exceed client expectations. Whether you need plain steel wire mesh or ribbed reinforcement mesh, we have the expertise and inventory to support your project needs.
Contact us today for expert advice or to place an order. We’re here to help you choose the right solution for your concrete reinforcement requirements.
