High Pressure Carbon Steel Pipe Fittings 3000BL Forged A105
High Pressure Carbon Steel Pipe Fittings 3000BL Forged A105
Brief description of piping fittings
Pipe fittings are the general term for parts and components that serve as connections, controls, directional changes, steering, seals, and supports in the pipe system.
It can be divided into:
1. Pipe fittings used to connect pipes are: flanges, pipe joints, pipe clamps, wire clamps, wire clamps, hose clamps, etc.
2. Fittings that change the direction of pipe: elbow, elbow
3. Fittings for changing pipe diameter: reducing diameter (reducing pipe), reducing elbow, branch pipe base, reinforcing pipe
4. Add pipe fitting for pipe branch: three way, four way
5. Pipe fittings used for pipe sealing: gasket, raw material belt, hemp, flange blind plate, pipe plug, blind plate, head, welding plug
6. Pipe fittings used for fixing pipes: clasp, tug hook, lifting ring, bracket, bracket, pipe clamp, etc.
China is already the world’s largest producer and consumer of building materials. Various pipe fittings and flanges are widely used in various fields of life. Hebei Pipefun is a professional pipe fittings manufacturer. You can click here to contact us.
Products
Forged Pipe Fittings
Material
ASTM:A234-WPB, WP1, WP5, WP9, WP11, WP12, WP22, WP91, WP92, A420,
WPHY42, WPHY52, WPHY60, WPHY65, WPHY70, WP304,
WP304L, WP304H, WP316, WP316L, WP321, WP347, WP347H
DIN:ST37.0, ST35.8, ST45.8, S235JR, P235GH, P265GH,
10CRMO910, 15CRMO, 12CR1MOV
Standards
ASME:ANSI B16.9, ANSI B16.5, ANSI 16.28, MSS-SP-75
ANSI B16.11 ANSI B16.47
DIN: DIN2605, DIN2615, DIN 2616, DIN 2617, DIN28011
SGP:JISB2311 JISB2312 JISB2313
EN:EN10253-1, EN10253-2
WALL THICKNESS
SCH10, SCH20, SCH40, SCH80, SCH160, XS XXS STD
SIZE
1/2”-72”
APPLICATION
Constructions, petroleum, chemical industry, power, ship building, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.
SURFACE
Shot blasted, rust-proof black oil painted
RADIUS
1D-10D
CERTIFICATES
ISO-9001:2000, API, CCS
Production Capacity
100000 Piece/Pieces per Month
MOQ
1 piece
Price term
EXW factory, FOB, C&F and CIF
Payment term
T/T, L/C, West Union, Money Gram and etc
Export to
USA, Canada, Australia, France, Spain, Oman, Iraq, Singapore, Vietnam etc
Package
Standard export wooden case or customized.

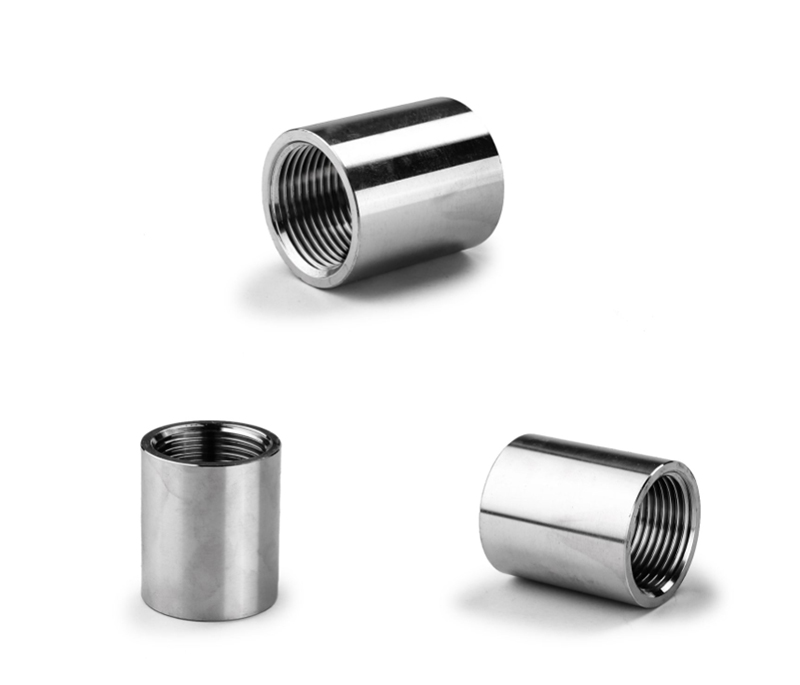

Product Name: High Pressure Carbon Steel Pipe Fittings 3000BL Forged A105
Standard: MSS-SP-75, MSS-SP-97
Size: 1/8″- 4″ ,DN10-DN100
Pressure: 2000#,3000#,6000#,9000#
Material: A105, A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H
Type:SW TH
Certificate: BV, SGS, LOIYD, TUV, and other party alloyed by clients
MOQ: 1 piece
Application: High pressure usage
