JC590 DTH Drilling Machine

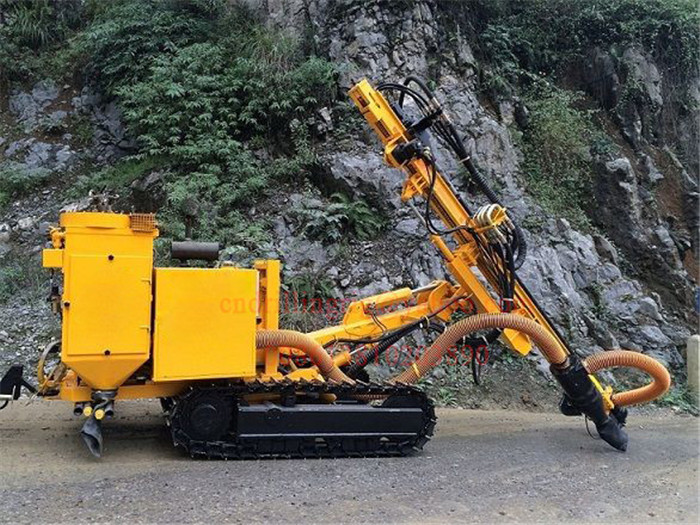

JC590 hydraulic down-hole rock drill is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind.This mobile drilling rig is convenient and efficient to operate. This drill rig is the best replacement for traditional pneumatic drills in most operation. The drilling rig is compact in structure, simple in operation,light in total weight. JC590 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries.JC590 rock blasting drilling machine is also used for anchor in road, railway, power station, civil engineering and building etc.
Characteristics
1: The Rugged track was driven by hydraulic motor with high traveling ability.
2: The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.
3: The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more suitable for operation in complex worksites.
4: The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best price-performance ratio than air rig.
5: The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.
6: The carriage with rollers provides for minimal wear to the drill guide.
7: The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.
8: The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.
9: The special compensation device makes a full protection of drill rod threads.
Specification
1
Rock Hardness
F=6-20
2
Hole Diameter
mm
90-165
3
Hole Depth
m
40
4
Drilling Rod Diameter
mm
60,76,89
5
Rotation Torque
Nm
4500
6
Rotation Speed
rpm
0-100
7
Max. Feed force
KN
30
8
Max. Lifting force
KN
30
9
Max. Feed Speed
M/min
15
10
Max. Lifting Speed
M/min
15
11
Max Swing of Boom
°
45° left / 45° right
12
Max Dump of Boom
°
up60 down20
13
Max Swing of Guide
°
30(L) / 91(R)
14
Max Dump of Guide
°
180
25
Guide Extension
mm
1200
15
Feed Stroke
m
3
16
Manufacturer
CUMMINS
17
Electrical System
24
Volt
18
Compressor Pressure Required
M³/min
Φ≤115 11.3m2/min(1.4 Mpa)
Φ≤140 13m2/min(1.4 Mpa)
Φ≤165 17m2/min(1.4 Mpa)
Φ≤165 21m2/min(2.4 Mpa)
19
Max. Travel Speed
Km/h
2
20
Gradeability
°
24
21
Net Weight
kg
6100
22
Shipping Length
mm
6900
23
Shipping Width
mm
2200
24
Shipping Height
mm
2200
