Xintai manufactures Lattice Telecom Tower products for 4G/5G base stations, mobile networks, microwave transmission, broadcasting systems and remote wireless coverage projects. This product can also be positioned as a 4-Legged Lattice Communication Tower, using a four-column angle steel truss structure with horizontal and diagonal braces for stable self-supporting performance.
Compared with a monopole tower, this lattice structure offers higher load capacity for multiple antennas, microwave dishes and maintenance platforms. Compared with a Guyed Communication Tower, it does not require large ground anchor areas, making it suitable for telecom sites where independent structural support, compact site management and long-term outdoor durability are required.
Self-Supporting Steel Lattice Tower for Telecom Infrastructure
A Lattice Telecom Tower is designed to carry communication antennas, microwave equipment, radio devices, feeder cables, work platforms and lightning protection systems. The square lattice structure distributes wind load and equipment load through four main legs, helping improve rigidity and overall structural stability.
For telecom operators, EPC contractors and tower infrastructure suppliers, this tower type is a practical choice for medium-height and high-height communication sites, especially in mountainous areas, coastal regions, industrial parks, oil fields, mines, border areas and high-wind environments.
What Is a Lattice Telecom Tower?

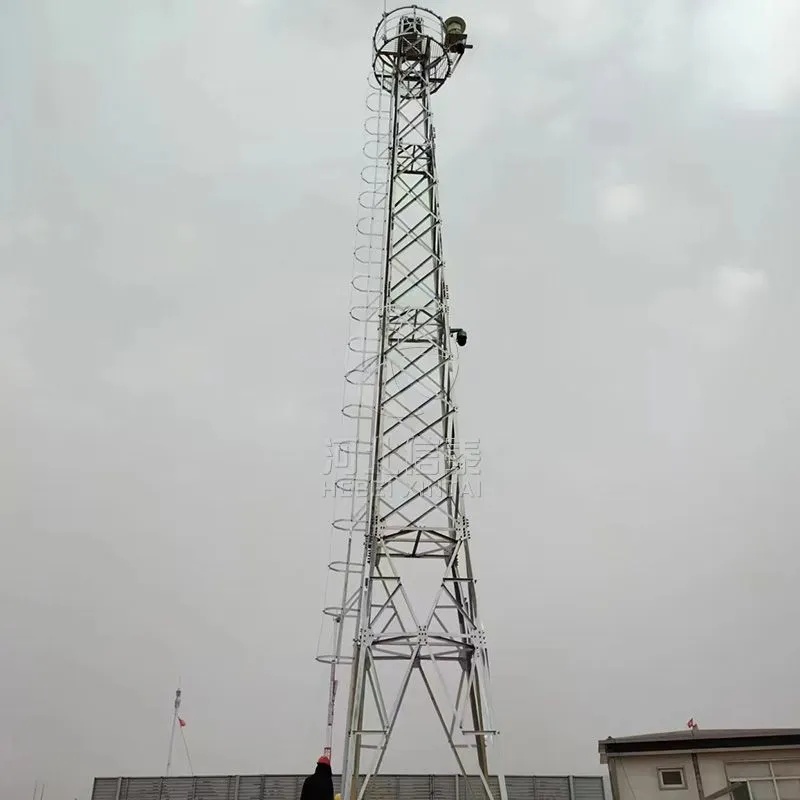

A Lattice Telecom Tower is a steel telecommunication tower made from angle steel or steel pipe members connected by high-strength bolts. The tower body normally includes main legs, horizontal braces, diagonal braces, antenna platforms, ladders, cable supports, grounding components and other accessories.
The main advantage of a lattice structure is its strong bearing capacity. It can support multiple antennas and microwave dishes at different heights while maintaining good wind resistance. This makes the 4-Legged Lattice Communication Tower suitable for 4G/5G base stations, microwave links, broadcasting transmission and wide-area signal coverage.
The angle steel four-column communication tower, also known as a four-column angle steel tower or four-column angle steel communication tower, is a self-supporting communication tower with four equilateral angle steels as the main material, and a square truss structure composed of horizontal and diagonal braces. It is the most traditional, stable, and widely used tower type in the fields of communications, power, broadcasting, forest fire prevention, and security.
Structural Features
Structural Form
Four-column angle steel truss, square cross-section
Main Material
Q235B / Q355B equilateral angle steel
Connection Method
Flange connection + high-strength bolts
Corrosion Protection
Overall hot-dip galvanizing, long-term outdoor corrosion protection
High rigidity, extremely strong wind resistance, good stability
Can be made into ultra-high tower type, with high load-bearing capacity
Common Heights
30m, 35m, 40m, 45m, 50m, 55m, 60m, 65m, 70m, 80m, 100m and above.
Advantages
● Most stable structure, highest safety
● High load-bearing capacity, can simultaneously mount multiple antennas, microwaves, and monitoring equipment
● Excellent wind resistance, earthquake resistance, and anti-icing performance
● Moderate cost, long service life
● Suitable for harsh environments such as mountainous areas, coastal areas, and windy areas
● Convenient maintenance and simple repair
Applicable Scenarios
China Mobile / China Unicom / China Telecom 4G/5G Base Station
Broadcasting, Microwave, and Transmission Communication Towers
Forest Fire Monitoring Towers, Lookout Towers
Oil Field, Mine, and Border Defense Communication
Coastal, Mountainous, and High-Wind-Pressure Areas
Signal Coverage for Large Factories and Industrial Parks
Standard Accessories
● Internal Ladder / External Ladder (with Fall Protection Device)
● Multi-layer Antenna Platform
● Antenna Pole, Feeder Bracket
● Lightning Rod, Grounding Device
● Work Platform, Maintenance Platform
● All Components Hot-Dip Galvanized for Corrosion Protection
