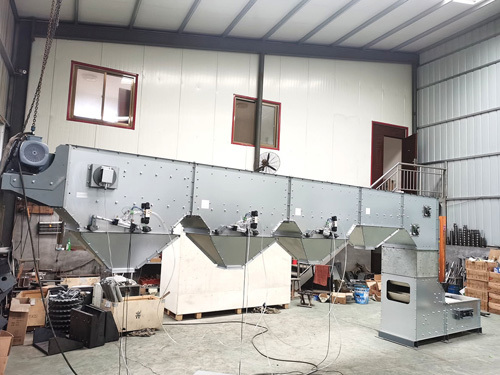

Multi-point discharge elevator

The multi-point discharge pendulum bucket elevator conveyor is a vertical and horizontal bulk material handling system that combines standard pendulum bucket elevator lifting with multiple independently controlled discharge outlets along the upper horizontal run — allowing a single machine to lift material from one inlet at floor level and deliver it to 2, 3, 4, 5, 6, or up to 7 downstream positions such as storage silos, filling machine hoppers, multi-head weighers, batch mixers, or packaging stations, without the need for separate conveyors between each downstream point.

product superiority

1. Multi-functional device with revolutionary spatial capabilities

· Multi-device replacement: A single device can replace the complex system of “one hoist + multiple horizontal conveyors + several distributors”, significantly reducing equipment investment and factory space requirements.

· Three-dimensional layout: Along the main tower of the hoist, unloading ports can be installed at multiple different heights (typically 2-8 points) to directly connect with production lines or silos on each floor.

· Simplified process flow: Materials are lifted into position in a single operation and precisely distributed, reducing intermediate transfer steps and fundamentally minimizing crushing risks.

2. Intelligent non-destructive unloading

 · Precise fixed-point unloading: Each unloading point is equipped with an independent intelligent unloading gate or tipping mechanism, which is precisely triggered by the control system to ensure that materials are discharged only through the designated outlet.

  · Impact-free switching: The unloading operation is performed with pneumatic or electric slow motion execution, ensuring smooth switching and preventing material collisions or blockages during diversion.
