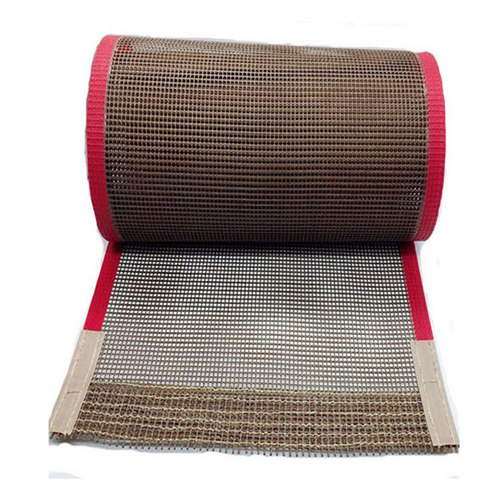

PTFE Mesh Belt
PTFE Mesh Belt are made from high quality open mesh woven fiberglass coated with ptfe resin. The open mesh area allows maximum air flow optimising drying times. Designed to operate in extremes of both temperature and chemical exposure, PTFE mesh belts have been a natural choice for dryer manufactures. It is ideally suited for conveying products and is commonly used in a wide variety of industries, such as gas, electric, infrared(IR), radio frequency(RF), microwave and ultraviolet(UV)conveyorized drying operations.
1. Lightweight and energy efficiency for economical operation
2. Outstanding temperature resistance (-170oC + 260oC)
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. Exceptional strength and dimensional stability
7. Superior tracking
Model
Mesh Size
Material
Thickness
Weight
Max Width
Colour
6001
1x1mm
fiberglass
0.75mm
560g/m²
4000mm
Brown
6001 AS
1x1mm
fiberglass
0.75mm
560g/m²
4000mm
Black
6004
4x4mm
fiberglass
1.0mm
450g/m²
4000mm
Brown
6004 AS
4x4mm
fiberglass
1.0mm
450g/m²
4000mm
Black
6004 Blue
4x4mm
fiberglass
1.0mm
490g/m²
4000mm
Blue
6008
4x4mm
fiberglass
1.0mm
600g/m²
4000mm
Brown
6008Blue
4x4mm
fiberglass
1.0mm
600g/m²
4000mm
Blue
6008AS
4x4mm
fiberglass
1.0mm
600g/m²
4000mm
Black
6015
2×2.5mm
fiberglass
0.70mm
505g/m²
4000mm
Brown
6015 AS
2×2.5mm
fiberglass
0.70mm
505g/m²
4000mm
Black
