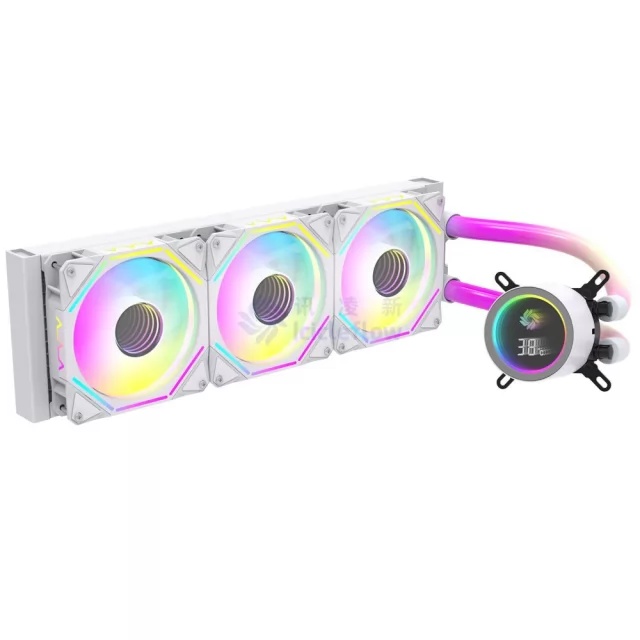

TD-IL-R360 Liquid Cooler
Product Description
1. With CPU temperature display (Really core temperature)
2. 18 kinds of magic light effect changes (Appearance light effect cool)
3. Three-phase non-inductive motor (quiet, low-torque starting)
4. Ceramic shaft core (strong wear-resistant, cooling pump long running guarantee)
5. PPS water parts (high temperature resistance, less deformation, not easy to produce water leakage)
6. High and low temperature resistant sealing material (ensure no leakage)
7. Low noise (quiet product operation, no noise to disturb consumers)
8. Separate blade patented design (unique design for water cooling industry)
9. Product overall low evaporation rate (product liquid life assurance)
10. High and low temperature rubber pipe (product liquid life guarantee)
11. Patented runner – low flow resistance design (water cooling industry unique design, the first use of rubberless shunt design)
12. High ratio of filling space (high filling rate, product life guarantee)
13. Low thermal resistance heat dissipation performance guarantee (reflecting the overall thermal performance of the product)
14. Intel, AMD universal installation backplane bracket installation (easy for consumers to replace the platform)
15. High thermal conductivity pure copper contact CPU (ensure fast heat transfer speed)
Items
Specifications/Conditions
Product model number
Icicleflow 360 liquid cooler
Coldplate head size
W70 * L70* H54mm
Coldplate head size
W22.4 X L15.8X H8.5mm
120 radiator
W396 X 120 X27mm
Hose Specifications
Black rubber pipe *2, coat black braided mesh,L350mm
Hose cover
Aluminum alloy, oxidized black sleeve, ∅12.4*∅13.2*12.3mm
Top cover specifications
70 x 70 x 41.1mm, made of PC, sprayed black paint onthe surface
Skive base spec
L62*W53*H3.8mm, material copper
Impeller poles
10 Poles / 10 Poles
Stator slots
12 slots / 12 slots
Pump rated voltage
DC 12V
