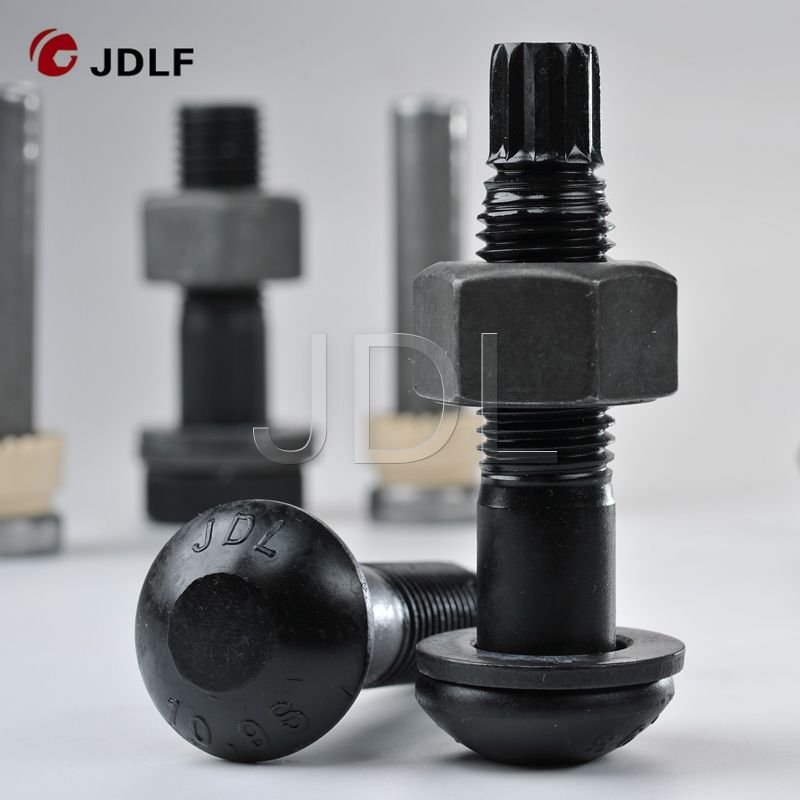

Torsional Shear Bolt

Torque-shear bolt is also well known for torsional shear bolt, is a specialized high-strength fastener designed for critical structural connections. Its external feature is that the bolt head is cup head, and at the end of the rod, there is a plum blossom-shaped “breaking groove” (i.e., the torque control section), which is used in conjunction with the matching torque-shear type nuts and washers.

Specification

Standard

GB3632JSS II 09

SizeDiameter (length)

M16(40-150)

M20(45-180)

M22(50-200)

M24(50-200)

M27(65-200)

M30(80-200)

Material

20MnTiB

35VB

nut  material-size

35K-Diameter24

35K-Diameter28/30

35K-Diameter34

35K-Diameter34/36

45#-Diameter38

45#-Diameter42

washer  material-size

45#-Thickness3.55

45#-Thickness3.55

45#-Thickness4.55/4.6

45#-Thickness4.55/4.6

45#-Thickness4.55/4.6

45#-Thickness4.55/4.6

Surface treatment

black oxide

Grade

10.9

Production process

Raw materials entering the factory – drawing – cold heading  -Heat treatment- inspection – packaging

Package

30kg/ctn

Remarks

The tensile strength is more than 1000mpa

DELI Torsional Shear Bolt is a specialized high-strength fastener provided by our Industrial Fasteners Supply, engineered to resist torsional and shear forces in heavy-duty steel structures, machinery assembly, and industrial equipment.
