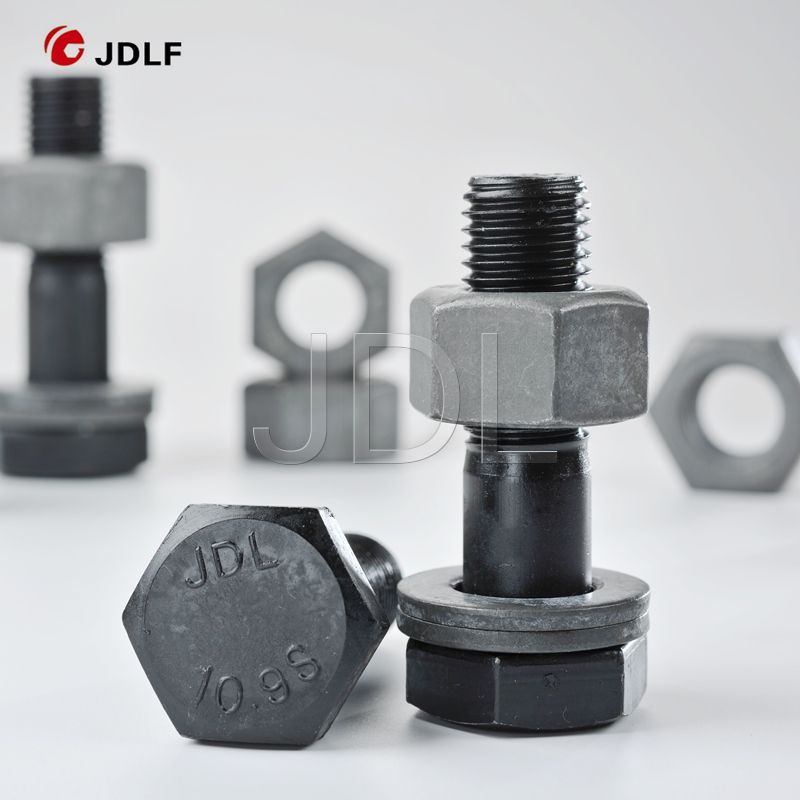

Heavy Hex Bolt (Structural Steel Hexagonal Bolt)

Steel structure large hexagon bolts are high-strength fasteners specifically designed for steel structure connections. They typically consist of a bolt shank, a hexagonal head, and a fully threaded or partially threaded section. The head features a standard hexagonal design. Ordinary wrenches or socket tools are allowed for installation.

Specification

Standard

GB1228A325A490

Size Diameter (length)

M16(40-150)

M20(45-170)

M22(50-200)

M24(55-200)

M27(65-200)

M30(80-200)

Material

20MnTiB

35VB

Nut  material-size

35K-Diameter24

35K-Diameter28/30

35K-Diameter34

35K-Diameter34/36

45#-Diameter38

45#-Diameter42

washer  material-size

45#-Thickness3.55

45#-Thickness3.55

45#-Thickness4.55/4.6

45#-Thickness4.55/4.6

45#-Thickness4.55/4.6

45#-Thickness4.55/4.6

Surface treatment

black oxide

Grade

10.9

Production process

Raw materials entering the factory – drawing – cold heading  -Heat treatment- inspection – packaging

Package

30kg/ctn

As a professional Heavy Hex Bolt manufacturer, JDELI  provides full-standard structural hex bolts for steel structure buildings, bridges, and infrastructure projects worldwide.
