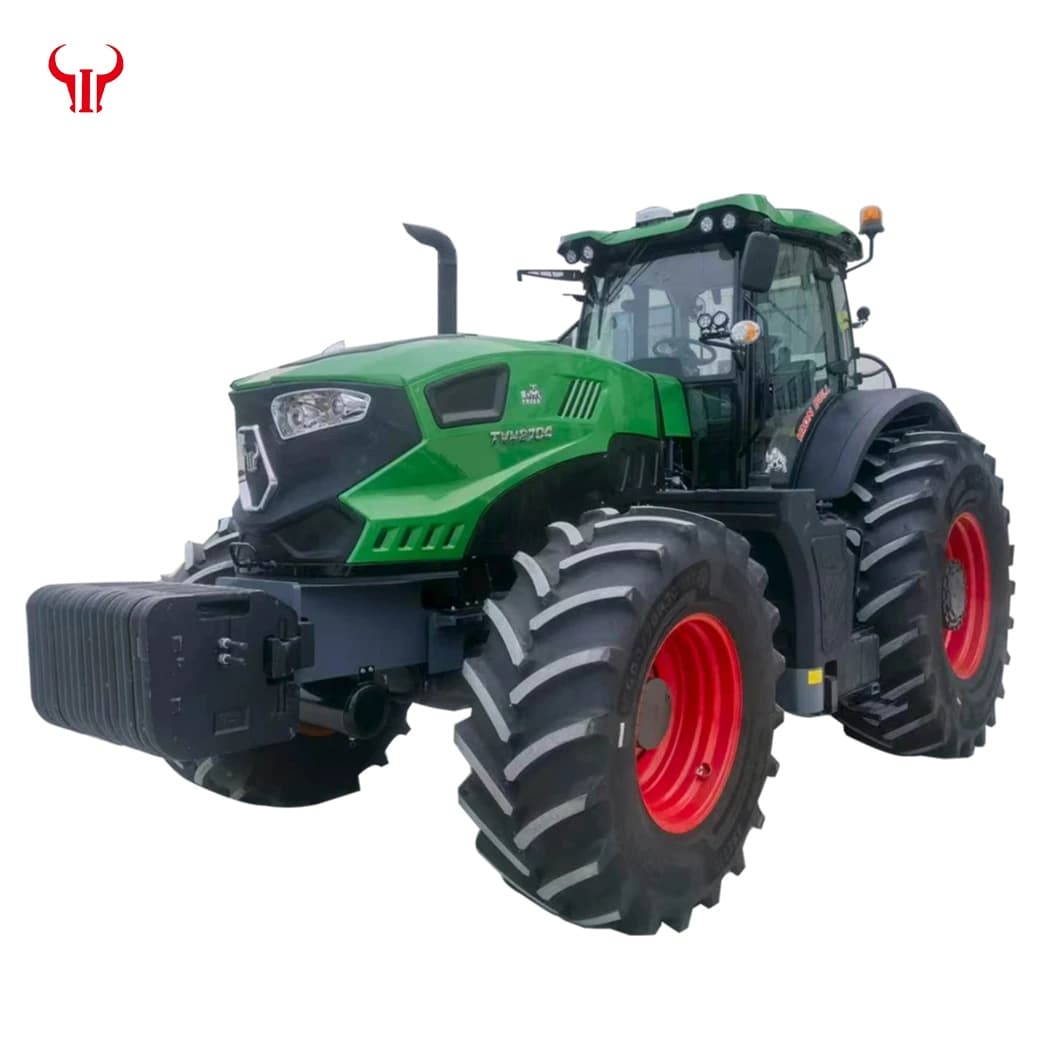

TVH2704-3504（Hybrid Tractor）
Hybrid tractors adopt a diesel engine plus motor hybrid drive system. Supported by an intelligent energy management system, it dynamically distributes power according to various working conditions such as heavy loads, light loads, sloped fields and paddy fields. The diesel engine operates steadily within its high-efficiency range. Combined with the motor’s advantages of high low-speed torque and quick response, the overall fuel saving rate reaches 10%~35% with greatly improved traction. Equipped with stepless speed change, it runs smoothly during operation and effectively reduces labor intensity. It also features regenerative braking for energy recovery.
Technical Overview & Core Parameters
TRACTOR MODEL
TVH2704
TVH3004
TVH3504
HORSE POWER
270HP
300HP
350HP
WHEEL DRIVE
4X4
ENGINE BRAND
Hybrid Tractor,Shangchai
ROPS
ROLL BAR AND ROOF/ CABIN
DIMENSION
6120 x 2890 x 3380 MM
GROUND CLEARANCE
480mm
WEIGHT
12400kg
WHEEL BASE
3130 MM
WHEEL TREAD
1904-2288 MM
Hybrid transmission model
（Power Split）E-CVT-Ⅰ
Power battery level
6KWH
Fuel tank capacity
700L
TIRE
600/70R30, 710/70R40-360/70R40
PTO
540/1000 RPM
POWER
221
As modern agriculture continues to demand higher productivity, lower fuel consumption, and reduced emissions, hybrid tractors have become an ideal solution for commercial farms and agricultural contractors. By combining the proven reliability of a diesel engine with the instant power of an electric motor, hybrid tractors deliver exceptional performance across a wide range of farming operations.
