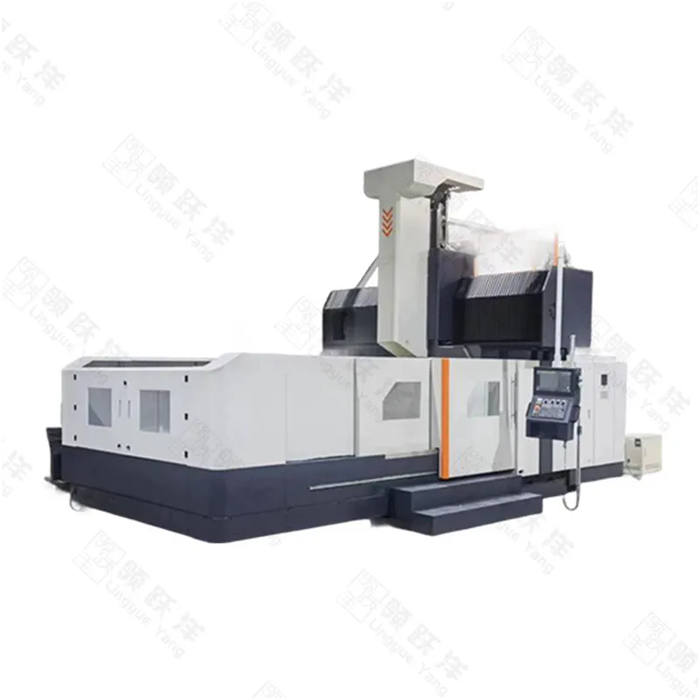

VH HIGH-SPEED GANTRY PROCESSING
●Powerful cutting capability combined with high precision and performance makes insert and armoring operation easy.
●Optional spindle drive adopts full-gear two-stage transmission to provide high torque output and excellent cutting performance. Heavy and rigid body structure, showing a unique heavy cutting performance.
●The main structure gradually adopts resin sand cast iron, reflecting cutting stability and high precision, high efficiency, heavy cutting. The main shaft and transmission gear adopt forced cooling to reduce temperature and improve accuracy.
Application Industry of 3 Axis Gantry Vertical Machining Center
Aerospace industry: It is very suitable for the manufacture of parts requiring high precision and complex geometry.
Automotive manufacturing industry: It is suitable for the production of key parts such as engine components and chassis components.
Mold manufacturing industry: It can accurately process various molds, including plastic molds, die-casting molds, etc.
Heavy machinery manufacturing industry: It is an ideal choice for companies that need to process large or heavy workpieces.
For more information about CNC Vertical Machining Center Manufacturer, please contact us!
name say
unit
Ginseng number
journey
X -axis travel
mm
3200
Y -axis travel
mm
2500
Z -axis travel
mm
900
Gantry width
mm
2200
Spindle nose to work table
mm
200~1100
Workbench
Workbench size
mm
30 00x 1900
Workbench load-bearing
Kg
6000
T-slot (number of slots – slot width * spacing)
mm
9 – 2 0 x 200
Spindle
Spindle taper hole (model)
–
BT50
Motor short-time rated power
kw
15/18.5
Motor torque
Nm
220
Speed range
r/min
6000
guide
X-axis rail
mm
55#
Y axis rail
mm
45#
Z axis rail
mm
Hard rail
speed
Cutting feed speed
mm/min
1- 8000
X , Y, Z axis fast moving speed
m/min
12/20/10
Tool magazine (optional)
Tool magazine method
–
Knife Arm
Tool magazine capacity
T
twenty four
Maximum tool length
mm
350
Maximum tool weight
Kg
18
machine tool Accuracy
Positioning accuracy (X/Y/Z)
mm
0.00 5 / 300
Repeatability (X/Y/Z)
mm
0.00 3 / 300
other
Machine length*width*height (approx.)
mm
7200 × 430 0 × 3800
Machine weight (approx.)
T
28
