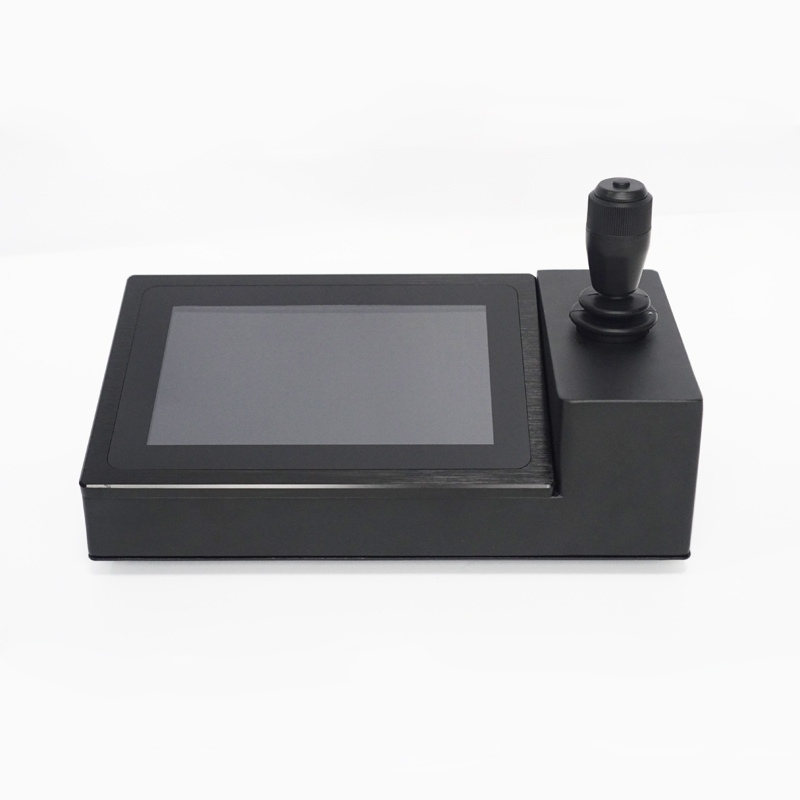

10.1 Inch Panel Pc With Programmable Hid Joystick
10.1 Inch Panel Pc With Programmable Hid Joystick
FEATURES:
1. Fully enclosed design, front IP65 waterproof, fully dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7×24 continuous operation.
5. Integrated HID Programmable 3 axis joystick.
6. High resolution screen 1920×1200
7. Used for monitoring and broadcast video
https://www.sihovision.com/customized-pc/inch-panel-pc-sc101j-capacitive-touch-from-shinho.html
SPECIFICATION:
PC
CPU
Intel® Core i5-5200U Dual Core, 2.2GHz
Chipset
Intel Valley View SSA-CUnit
Memory
8G DDR3
Hard Drive Capacity
128G SSD
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1xRealtek RTL 8111E Gigabit Ethernet controller
I/O Interface
4xUSB 2.0, 2xUSB3.0, 2xCOM RS232
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System
Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size
10.1″
Resolution
1920*1200
Aspect ratio
16:10
Support Color
16.7M colors
Brightness (cd/m²)
400+
Response time
5ms
Contrast ratio
1000:1
View angle
80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type
Project Capacitive Touch (10 points)
Touch Interface
USB (RS232 optional)
Touch response time
2ms
Luminousness
90%
Surface Hardness
7H
Working life
>50 million times
Touch options
(5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply
AC 100-240V
Working voltage
DC 12V
Power consumption
≤35W
