Product Description

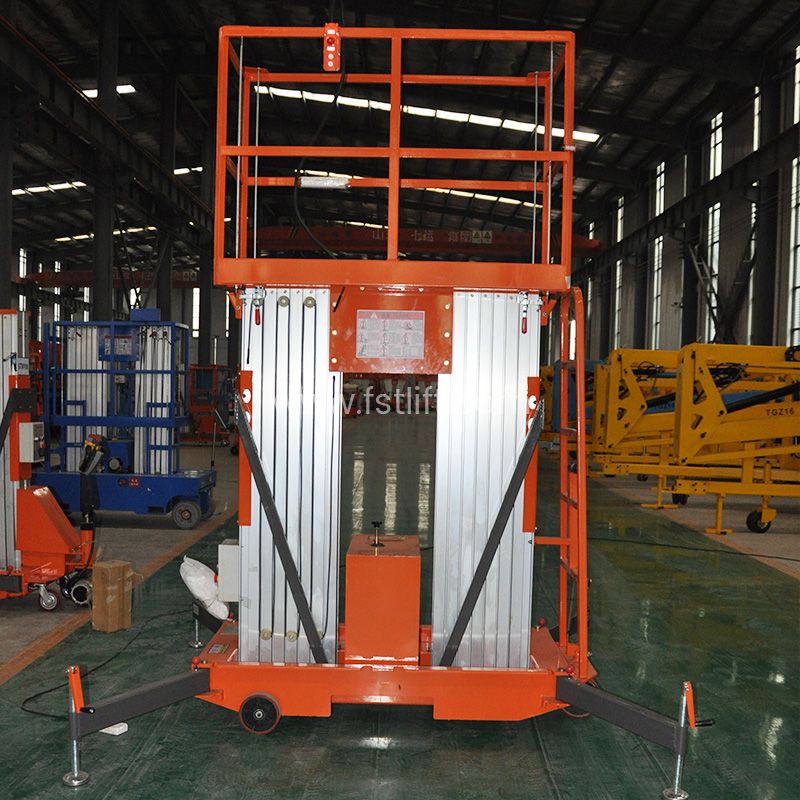

Double Mast Lift offers a robust solution for lifting tasks requiring a higher load capacity and extended reach compared to single mast lifts. Crafted from high-strength aluminum alloy materials, this vertical mast lift ensures durability and stability in various industrial and commercial environments. With a lifting height range of 4-14 meters and a generous load capacity of 200kg, it’s engineered to meet diverse lifting needs efficiently.
Features:
Quality Assurance: Aerial platform lifts have passed ISO and CE certification
Enhanced Stability: The double mast design enhances stability during operation, providing a secure platform for workers at elevated heights.
Flexible Operation: Equipped with translatable supporting legs and tailor-made guide wheel devices, double mast vertical lift offers smooth and stable lifting, even in confined spaces or narrow aisles.
Safety Measures: Multiple safety features including overload protection, safeguard valves to prevent hydraulic pipe rupture, and emergency stop buttons ensure a safe working environment.
Versatile Platform: The double mast man lift’s platform can be extended with a stretch platform, enabling access to areas beyond the standard reach.
Product Parameters
Product Name
Model
Max Platform Height(M)
Max Working Height(M)
Load Capacity(KG)
Platform Size(MM)
Overall Dimension(MM)
Machine Weight(KG)
Double Mast
GTWY4-200
4
5.7
200
1100*600
1300*900*1750
380
GTWY6-200
6
7.7
200
1100*600
1300*900*1900
420
GTWY8-200
8
9.7
200
1150*600
1360*900*2000
550
GTWY10-200
10
11.7
200
1350*600
1560*970*1900
600
GTWY12-200
12
13.7
200
1450*600
1660*970*2000
700
GTWY14-200
14
15.7
200
1450*600
1660*1100*2350
800
