JXY200C Three Wheel Vehicle Mounted Hydraulic Spindle Core Drilling Machine

Drilling diameter:300-75mm

Drilling Depth: 30-200m

Drilling Method: Mud Drilling

>> Application

JXY200C Multipurpose Three Wheel Vehicle Mounted Hydraulic Spindle Core Bore Drilling Machine is designed for Geological survey and prospecting, exploration roads, and high-rise building foundations, as well as a variety of concrete structure inspection holes, rivers, and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning.

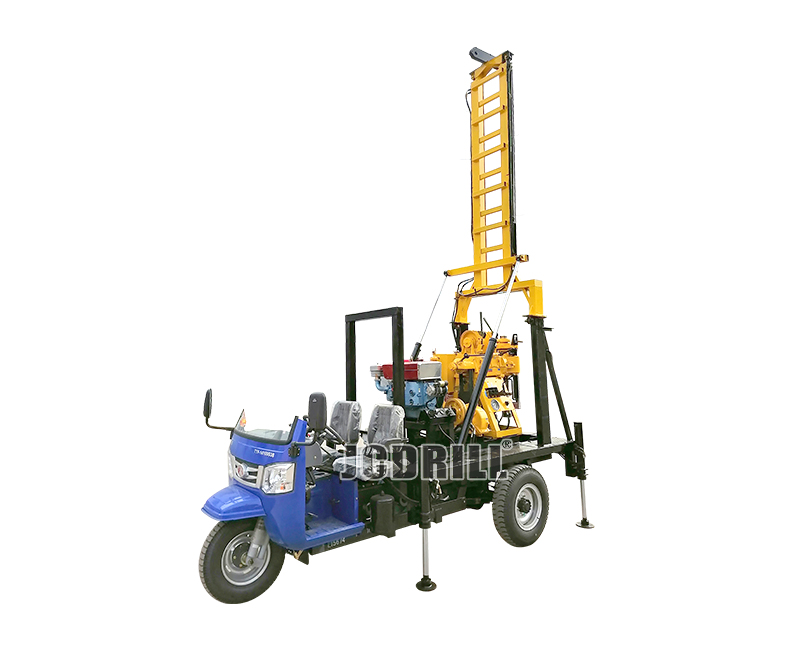

JXY200C is a multi-function hydraulic vehicle mounted rotary spindle drilling rig

It adopts a three-wheel chassis 7YP-1475D1, the drive systems, hoist, and mud pump are mounted on this chassis, a reasonably compacted layout, easy to operate.

A Three-Wheel Vehicle Mounted Hydraulic Spindle Core Drilling Machine is a compact and mobile drilling rig designed for core drilling in various geological formations. It is mounted on a three-wheel vehicle for ease of transport and maneuverability, making it ideal for exploration in remote or confined areas. This type of machine uses a hydraulic spindle system for precise control and efficient drilling.

>> Characteristics

>>It configures BW-160 mud pump, high pressure, big flow, which can ensure drilling depth and diameter.

>>The rig has a shifting device, it can move on the vehicle, convenient to operate while drilling.

>>The hydraulic folding mast is safe and convenient to operate.

>>The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.

>> Specification

Description

JXY200C

Description

JXY200C

General

Drilling depth

30-200m

Mud pump

Rated flow

160L/min

Drilling diameter

300-75mm

Rated pressure

1.3Mpa

Max.Hole Diameter

500mm

Driving power

5.15kw

Drilling Angel

90-75°

main machine weight

190kg

Mast height

7000mm

Dimension

1110*725*965mm

Mast effective height

6500mm

Drill Pipe

Drill pipe length

4.2m

Kelly/active pipe

59*53mm

Drill pipe diameter

42/50/60mm

Weight

1950kgs

Chassis

Model

7YP-1475D1

Spline

Structure

Ball bearing

Drive mode

Rear-wheel drive

Spindle rotating speed

64/128/287/557r/min

Power Model

ZS1115E2

Spindle stroke

450mm

emission standard

GB18322-2002,GB19756-2005(Ⅱ)

Spline Max.Torque

2400N.m

Rated power

16.2kw

Hoist

Max.Hoisting Capacity

1800kgf

Rotating speed

2200rpm

Tight rope cubic caliber

26mm

Stabilizing Jack

2 front jacks and 2 rear jacks.

hoisting speed

17,35,75,151r/s

Type

Hydraulic

Wireline diameter

12.5mm

Stroke

350 mm

Main hoisting line capacity

35m

Dimensions

Overall length

4300 mm

Power Unit

Model

ZS1115 diesel engine

Overall width

1600 mm

Rated power

14.7kw/2200rpm

Overall height

2800 mm
