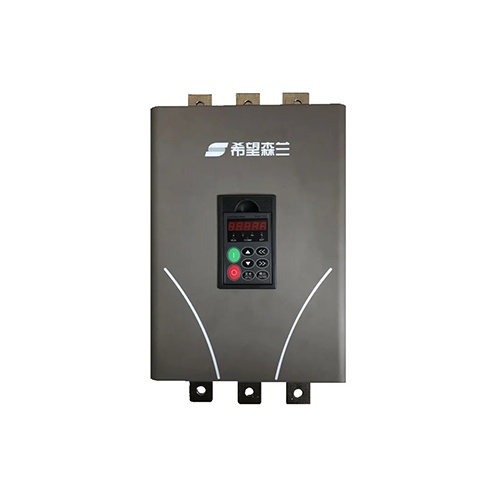

LSD100 Series Low Voltage Soft Starter
32-bit DSP for control system
Built-in RS485 Modbus protocol
Automatic current limiting function
High reliability with high level components
Intelligent operation interface
Modular structure design with compact size
LSD100 Series Low Voltage Soft Starter Specifications
Items
Descriptions
Input
Rated voltage, frequency
3 Phase: 380V, 50Hz/60Hz
Allowable range
Voltage fluctuating range: -15%~10%; instantaneous -20%; frequency:2%
Control power
Single phase: 220V, allowable range: 160-250V
Number of staring
<=8 time/hour
Initial voltage
25~80% of Ue
Basic
Run command
Operation panel, control terminal setting, communication setting
Analog output
2 channels AO: 0/4~20mA
Digital input
3 digital inputs
Digital output
3 relay output
Communication
Built-in RS485 interface with Modbus RTU
Optional
LCD display
IP Class
IP00
Cooling
Natural cooling
Protections
Overcurrent, undervoltage, input/output phase loss, overheating, motor overload
