Our mission magnum pump parts are interchangeable with those (standard) manufactured by mcm®, mission magnum, halco, mattco, harrisburg, national oilwell, mission2500 supreme, spd mud hog, derrick premium 2500,TSC brand. All spare parts are made of America standard.



High-Quality Interchangeable Mission Pump Parts

Our mission pump parts for sale are interchangeable with most of the international brand including MCM, NOV, MISSION, HALCO, MATTCO, HARRISBURG,SPD mud hog, which helps customer to source spare parts easily.We ensure our customer can easily obtain technical support.We have a highly qualified technical team to give complete technical solution for our pumps.



Mission Pump Parts include Mission Magnum I Pump Parts, Mission 2500 Supreme Pump Parts, Mission Sandmaster Pump Parts, Mission XP Pump Parts size 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23, 14x12x22 etc.

Mission magnum type heavy duty centrifugal sand pump available in various sizes and setups, with hard iron casted left hand housing and impeller, mechanical shaft seal with ceramic shaft sleeve and graphite backup packing. most common 2500 series pump will be equipped with those options, other configurations are available.

SXP/XL Centrifugal Mission Pumps Main Parts

• Heavy Duty Pedestal – heavy duty frames are manufactured from cast iron for high strength and durability to withstand high piping loads.• Housing – The Mission magnum XP/XL frac pump has been beefed up in critical wear areas for extra life. The concentric housing eliminates vibration, turbulence, cavitation, and reduces bearing load and shaft deflection.• Impeller (Open type) – Mission XP/XL pump open vane impeller design is engineered to reduce turbulence, eliminate recirculation, lower radial and thrust loads, and provide a smooth flow of fluid through the pump.• Face Plate – The Mission XP/XL pump casing comes with replaceable wear plates. This feature reduces the maintenance costs of housing replacement by merely replacing the wear plates.• Shearing Ring- Mission XP pump offers a shearing ring option to convert a regular centrifugal pump to a shearing pump for special mud applications.• Mechanical Seal – Mission XP/XL pump takes pride in carrying one of the finest mechanical seals on the market, whether it be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide. They come with a highly polished sealing faced and with piton bellows and stainless steel springs.• Pump Bearings – Mission XP/XL pump uses nothing but the best and the finest bearings in its pumps. The outboard bearing assembly consists of a pair of angular contact bearings with high thrust load ratings and zero end play. The heavy duty inboard bearing is a double row ball bearing with high radial load ratings to compensate for the larger size impellers and heavy duty applications.

• Labyrinth Seals (optional) – Mission XP pump installs labyrinth seals by customer request in all its pumps to isolate the bearings from harmful contaminants while keeping bearings lubricated.



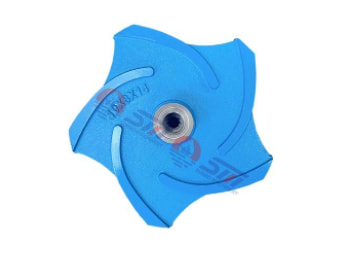

Here is the mission magnum pump parts list for sale:

Item

Qty

Part No.

SKU No.

Description

Material

1*

1

See below

See below

Casing

Hard iron

1A

1

10399-46-1

648403012

Gasket,casing

Vellumoid

1B

12

3932-61

648402014

Nut,casing

Stl

1C

12

3862-76

648401115

Stud,casing

Stl

1D

1

8505/4/1

86485503

Plug,Casing Drain

Stl

1E

1

8505/4/1

646400507

Plug,flush line

Stl

2*

1

See below

See below

Impeller

Hard iron

2A

1

19110-72

64845082

Seal,impeller

Viton

2B

1



7300239

Washer,impeller

Stl

2C

1



7415648

Bolt,impeller lock

Stl

3*#

1

22223-01-30

641116157

Stuffing box,mech.seal

Hard iron

3*&

1

20614-01-30

643365042

Stuffing box,packed

Hard iron

3A

2

3861-117

648401016

Bolt,stuffing box

Stl

3B

1

19368-01

601499403

Grease fitting

Brass

4

1

20622A

641103338

Gland assy,packing

Stl 304

5A#

1

22451-1

648414308

Seal,mechanical

Tungsten

5A~

3

25014-04M-B

661007005

Packing, Shaft

Kevlar

6

2

B3701A

601102494

Bolt assy,gland

Stl 304

7

1

20612-02-33

646490557

Shaft

42CrMo

7A#

1

20943-21

641102182

Sleeve,shaft,M.S.

38CrMoAl

7A&

1

20613-21G-7A

641102181

Sleeve,shaft,Pack

Stl

7B

1

4372/5/21

601212392

Key,shaft

Stl

7C

1

23444-01-72

648415156

Seal,shaft sleeve

Viton

8

1

22210-1A

641116108

Deflector assembly

Composite

9

1

20618-12-1

644302499

Frame,grease lubricated

Cast iron

9A

1

May-05

601474737

Plug,oil drain

Iron

9B

3

2538-1H

648403608

Plug,oil fil

Iron

9C

1

May-05

601474737

Plug, Frame Drain

Iron

9D

1

Jan-67

601473689

Breather

Stl

9E

1

Mar-78

601174584

Oiler Assembly



9F

1

A 662014131

662014131

Dip Stick

Stl

9G

3

2538-1H



Bolt, Casing Jack

Stl

10A

1

20626

644303109

Cover,inboard bearing

Iron

10B

1

20625

648408706

Gasket,I.B.Brg.Cover

Vegetable fiber

10C

1

20619-01

648408300

Oil seal, I.B.Brg.Cover

Buna-n

10D

2

Jan-61

601407505

Bolt, I.B.Brg.Cover

Stl

10E

2

Feb-32

601408560

Nut, I.B.Brg.Cover

Stl

10F

1

20620-01

648408409

Exclusion Seal, I.B. Brg. Cvr.

Buna-n

10G

1

21641-01

661010033

Grease.Fitting

Stl

10H

1



648411908

Grease.Fitting

Stl

11

1

20615-1

661009010

Bearing,inboard

Vendor

12

1

20624-01-01

644308504

Housing,O.B.bearing

Iron

12A

1

7496-253

648402295

Seal, O.B.Brg.housing

Buna-n

12B

4

3861-138

648401057

Bolts, O.B.Brg.housing

Stl

12C

2

3932-62

658404702

Nut, O.B.Brg.housing jam

Stl

13

1

20617-01-01

641103296

Cover,O.B.Bearing

Iron

13A

1

19368-01

661010020

Grease zerk, O.B.Brg.Cover

Stl

13B

1

7496-26

72200017

O-ring, O.B.Brg.Cover

Buna-n

13C

1

20619-02

648408359

Oil seal, O.B.Brg.Cover

Buna-n

13D

2

3861-139

648401081

Bolt, O.B.Brg.Cover

Stl

14

2

20616-1

648408201s

Bearing, O.B.

Vendor

14A

1

Apr-24

648402105

Lockwasher,O.B.Bearing

Stl

14B

1

Apr-23

648402055

Locknut, O.B.Bearing

Stl

CASINGS ( including studs, nuts and gaskets)

Item

Qty

Part No.

Processing#

Description

Material

1*

1

19203-01-30A

641101753

Casing,3x2x13

Hard iron

1*

1

19205-01-30A

641101902

Casing,4x3x13

Hard iron

1*

1

19222-01-30A

641102058

Casing,5x4x14

Hard iron

1*

1

19122-01-30A

641101456

Casing,6x5x11

Hard iron

1*

1

19123-01-30A

641101605

Casing, 6x5x14

Hard iron

1*

1

19763-01-30A

641102157

Casing, 8x6x11

Hard iron

1*

1

19763-01-30A

641101308

Casing,8x6x14

Hard iron

1*

1

20937-01-30A

641102322

Casing,10x8x14

Hard iron

IMPELLERS

Item

Qty

Part No.

Processing#

Description

Material

2*

1

19204-XX-30

641215603

Impeller,3x2x13

Hard iron

2*

1

19206-XX-30

641217005

Impeller,4x3x13

Hard iron

2*

1

19224XXX-30

641217831

Impeller,5x4x14

Hard iron

2*

1

19121-XX-30

641211602

Impeller,6x5x11

Hard iron

2*

1

19121-XX-30

641212105

Impeller, 6x5x14

Hard iron

2*

1

19121-XX-30

641211602

Impeller, 8x6x11

Hard iron

2*

1

19116-XX-30

641209903

Impeller,8x6x14

Hard iron

2*

1

21867-XX-30



Impeller,10x8x14

Hard iron

Contact us for more information on mission pumps and mission pump parts.
