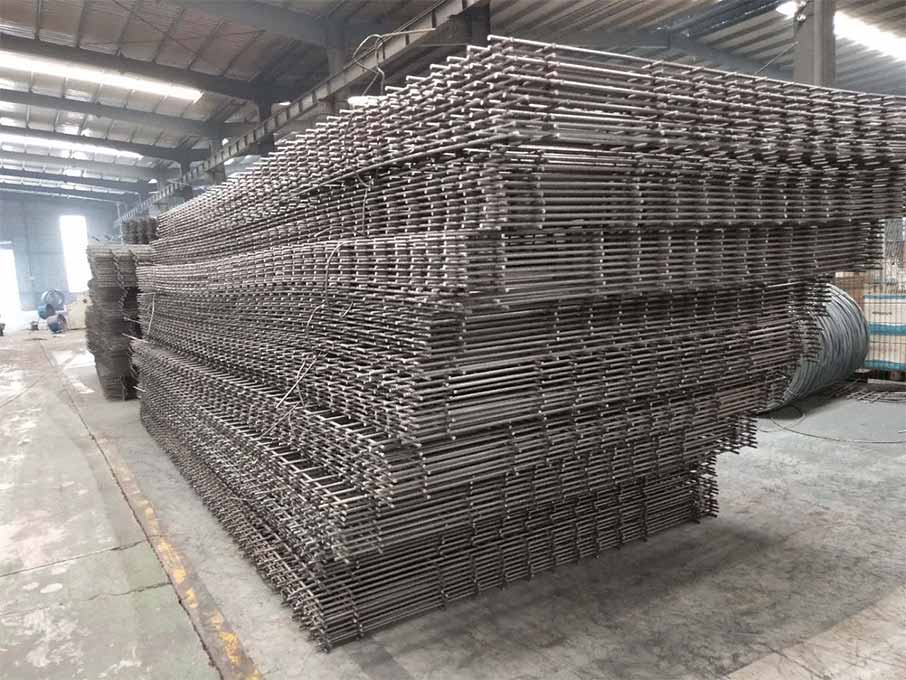

PPAF R / PPAF C / PPAF V BRC Mesh / reinforcement meshes

Heyou Wire Mesh – Trusted Brc Mesh Manufacturer

Looking for top-notch BRC Mesh solutions? Look no further! ANPING HEYOU WIRE MESH PRODUCTS CO.LTD, stands as a seasoned expert with 14 years of dedicated experience in crafting superior steel mesh products. If you need any help please feel free to contact us.

Heyou wire mesh factory can supply reinforcement meshes accordance to Normes Francaises NF A 35 016-1996. The material of reinforcement meshes of which chemical component and mechnical properties is suit for Norm NF EN10020 is FeE500-2 or FeE500-3.

Why Choose Heyou Wire Mesh for Your Brc Mesh Needs?

Proven Expertise: With a rich legacy in steel mesh production, Heyou Wire Mesh specializes in creating BRC Mesh and other wire mesh products that adhere to the highest industry standards.

Quality Assurance: Every step of our manufacturing process undergoes rigorous inspection, ensuring that our BRC Mesh not only meets but exceeds your expectations.

Customization at its Best: Want to better apply BRC mesh in different scenarios? Our team is dedicated to providing customized products that align perfectly with your project requirements.

Technical Support: Beyond just delivering products, we offer comprehensive technical support. Our experts can assist you in measuring physical properties, designing construction plans, and adapting products to suit your unique construction needs.

Global Recognition: Heyou Wire Mesh products have gained recognition worldwide. From Australia to Europe, America to the Middle East, Africa to Southeast Asia, our BRC Mesh is trusted and used in diverse regions.

Stringent Third-Party Inspection: Your satisfaction is our priority. Before shipment, our products undergo thorough third-party inspections, ensuring that you receive nothing short of excellence.

24/7 Online Support: Need assistance at any time? Our 24-hour online customer service is ready to help.

The Mechenical Properties of FeE500-2 and FeE500-3 as Below

Material No.

Limite supérieure d’ écoulement RaH N / mm2 1)

Rapport Rm / ReH

Total elongation at maximum load, Agt %

Valeur du fractiles

borne frontière

Valeur du fractiles

borne frontière

Valeur du fractiles

borne frontière

FeE500-2

500

475

1.03

1.01

2.5

FeE500-3

500

475

1.08

1.05

1) 1N/mm2 = 1MPa

2) Rm = Tensile strength

The Drawing of BRC Mesh / Reinforcement Meshes as Below

NL= Number of longitudinal bars

PL= pitch of longitudinal bars

dL= diameter of longitudinal bars

NC=Number of transverse bars

L= length of longitudinal bar

B=Length of transverse bar

u1=Overhang of longitudinal bars

u2=Overhang of longitudinal bars

The Specification of BRC Mesh/Reinforcement Meshes as Below

mesh type

diameter of wire(mm)

Pitch of wires(mm)

Dimension of Mesh

Area of Mesh(sqmm)

Per meter area sqm / m

Weight of Mesh (kg)

Mass (kg/sqm)

B(mm)

L(mm)

long

cross

PPAF R

4.5

200

300

2400

3600

8.64

1.042

PPAF C

4.5

200

2400

3600

8.64

10.8

1.25

PPAF V

4.5

4.4

200

160

2400

3200

7.68

9.6

1.25

PST 10

5.5

200

2400

4800

11.52

119

21.542

1.87

PST 20

150

300

2400

6000

14.4

188

128

35.808

2.487

PST 25

150

300

2400

6000

14.4

257

43.488

3.02

PST 30

100

300

2400

6000

14.4

385

128

46.464

3.227

PST 35

100

300

2400

6000

14.4

385

128

57.984

4.027

PST 45

150

300

2400

6000

14.4

424

168

66.864

4.643

PST 50

100

300

2400

6000

14.4

503

168

75.84

5.267

PST 60

100

200

2400

6000

14.4

636

251

100.296

6.965

PST 25C

150

2400

6000

14.4

257

57.984

4.027

PST 40C

100

2400

6000

14.4

385

86.976

6.04

PST 65C

100

2400

6000

14.4

636

143.712

9.98
