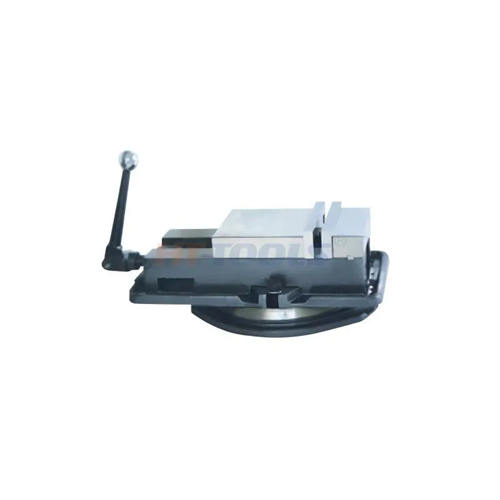

QM ACCU-Lock Precision Machine Vises
1. QM ACCU-Lock Precision Machine Vise is main attchments to precision millings grinders CNC machines, it is particularly suitable for the finishing of precision parts.
2. Parallelism 0.025mm/ 100mm, squareness 0.025mm.
3. The special segment in the movable jaw forces the vertical pressure downward when the horizontal.pressure works, so that this jaw does not lift the workpiece.
4. For positions allow extra capacity to change opening of jaw.
5. As the thrust component of the screw is equipped with thrust needle bearing if can be easily operated.
Order No
Width of Jaw(mm)
Height of Jaw (mm)
Max.Opening (mm)
GW/NW (kg)
Paking Shape
LxWxH (cm)
QM16100
100
32
100
17/16
paper case
38x25x18
QM16160
160
45
140
40/38
49x32x23
QM16200
200
50
190
75/69
wooden case
62.5x41x25.5
The CNC machine vise is an indispensable workholding solution for modern machining. From standard precision vises for general milling to advanced hydraulic and self-centering vises for high-speed, multi-axis machining, selecting the right vise ensures stable clamping, superior accuracy, and improved efficiency.
