Shear Stud

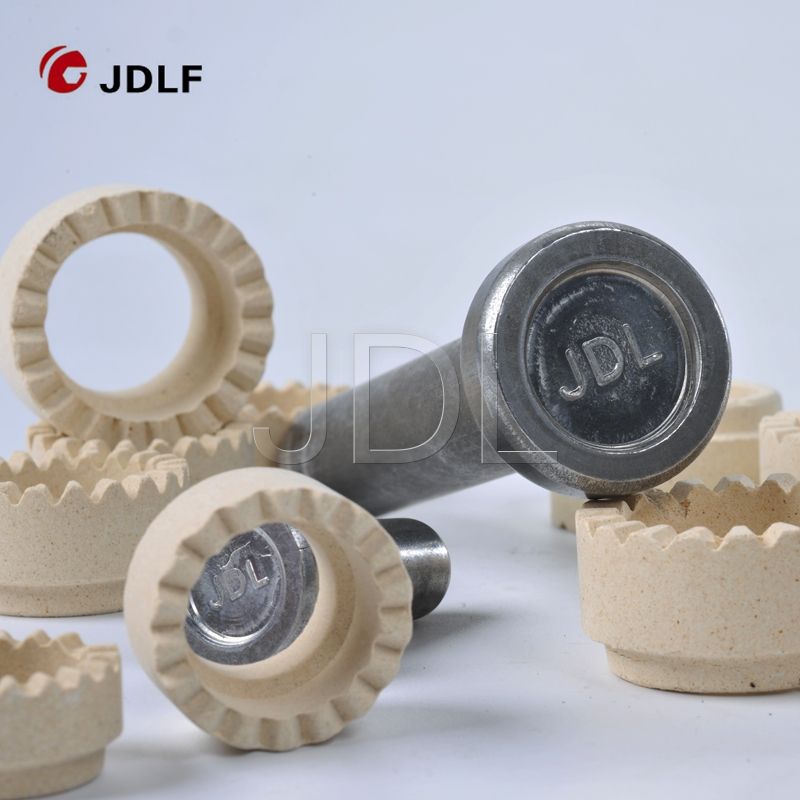

Shear stud is a type of fastener specifically designed for welding connections in steel structures, typically made of low-carbon steel or low-alloy steel. It is cylindrical in shape, with a nail head at one end and a welding end at the other (mostly flat or with an arc initiation structure).

Specification

Standard

GB10433ISO13918AWSD1.1-1.4

SizeDiameter (length)

M10,M13(40-120)M16(40-150)M19(40-210)M22,M25(70-225)

Material

Q195ML15SWRCH18A

Surface treatment

phosphating

Production process

Raw materials entering the factory – phosphating – drawing – cold heading – riveting – inspection – packaging

Package

25kg/box or bag

Remarks

ML15:The tensile strength is more than 350mpa,the yield strength is more than 230mpaSWRCH18A:The tensile strength is more than 450mpa,the yield strength is more than 350mpa

Shear Stud Connectors, also known as welded headed studs, are critical connectors between steel beams and concrete slabs. The 22mm diameter of these Shear Stud Connectors offers high load-bearing capacity, ensuring structural stability and resistance to shear forces in demanding construction projects.

Key Advantages

High Load-Bearing Capacity: 22mm studs designed for heavy steel-concrete composite loads.

Precision Welding Compatibility: Perfect for automatic or manual shear stud welding.

Durable Material Options: ML15 and SWRCH18A ensure long-term structural performance.

Customizable Lengths & Surface Finishes: Tailored to specific project requirements.

Strict Quality Control: From raw materials to final inspection, ensuring reliability in every batch.
