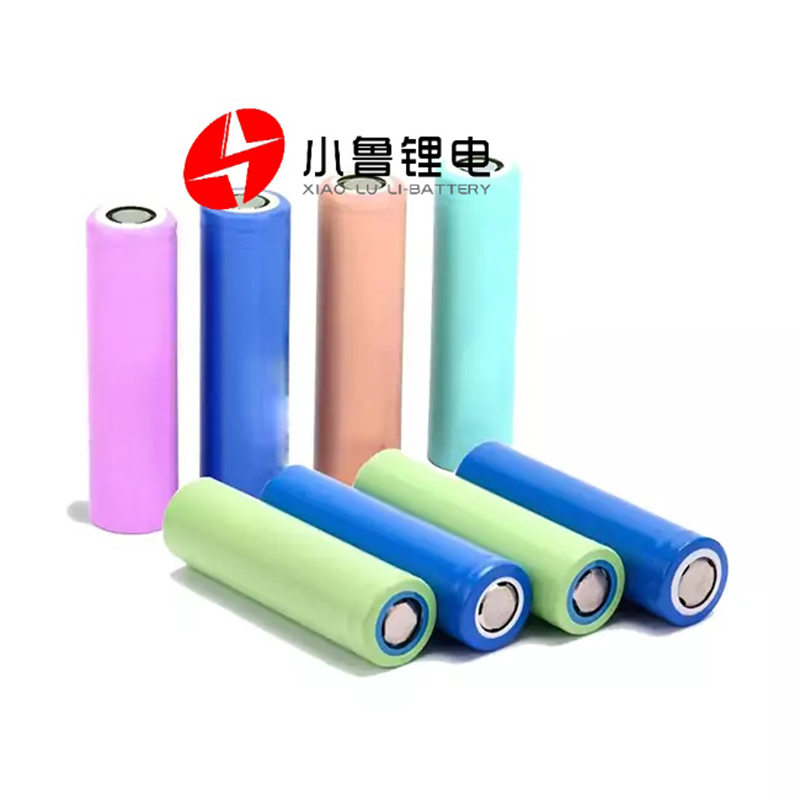

26700 Lithium-ion battery cells
The Lithium Iron Phosphate Battery refers to the lithium-ion battery with LiFePo4 as the positive electrode material. The anode materials of lithium-ion batteries mainly include lithium cobaltate, lithium manganate, lithium nickelate, ternary materials, lithium iron phosphate, and so on, among which lithium cobaltate is the anode material used in the vast majority of lithium-ion batteries.
Parameter information
Nominal capacity: 4000mAh
Maximum charge voltage: 3.65V
Discharge termination voltage: 2V
Maximum charge current: ≤1C
Maximum continuous discharge current: 3C
Discharge temperature: -20℃~60℃
Internal resistance: ≤20mΩ
LFP26700-4000 Features
Item
Specification
Rate performance
the maximum discharge current can reach 12A continuous discharge
Safety and reliability
certified by RoHS, BIS, CB, UN38.3, UL, CE, MSDS and battery directive
Strong adaptability
suitable for working in different environments, discharge capacity ratio ≥ 65% at -10°C
Long cycle life
0.5C/0.5C cycle life reaches more than 2000 times
The 26700 LiFePO4 Lithium-ion Battery combines high quality, reliability, and safety, making it a superior choice for a variety of applications. Its long service life, high energy density, and environmentally friendly design provide significant advantages, ensuring efficient and dependable power solutions.
