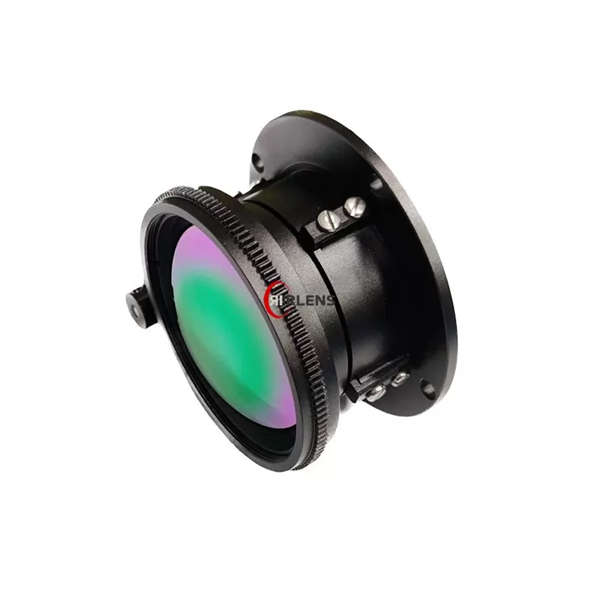

50mm F1.5 MWIR Motorized Lens
Advanced technologies for the highest performance mid-wave focal planes:
1. High-durability and hard-carbon 3.7-4.8 µm MWIR wavelength AR exposed mirror coating
2. Passive athermalization with the highest imaging performance from -40 to +60°C
3. Optimized for 640×512 cooled MWIR cameras with 15 μm pixel pitch
4. Motorized focus mechanism ensures crisp image.
OPTICAL
Focal Length / F#
50mm F/1.5
Compatible with detectors having 50mm
Detector (FPA) type
640×512-15μm
Working Spectral Band(SR)
3.7um-4.8um
FOV
10.97°×8.78°
Exposed Mirror Coating
DLC
AR and HD are available upon request
Imaging Range
Our MWIR lenses are widely used in various fields, including but not limited to:
Military & Defense: Used for target acquisition, surveillance, and threat detection, offering superior night vision and camouflage penetration capabilities.
Homeland Security & Law Enforcement: Effective border monitoring, intruder detection, and support for search and rescue operations.
Scientific Research & Industrial Applications: Used in process monitoring, early fire detection, and non-destructive testing.
Medical Imaging: Used for disease diagnosis and temperature mapping, capturing subtle temperature variations.
If you are a distributor, trader, or factory, we look forward to collaborating with you to provide the best MWIR lens solutions. Please feel free to contact us to learn more about our products and customization services.
