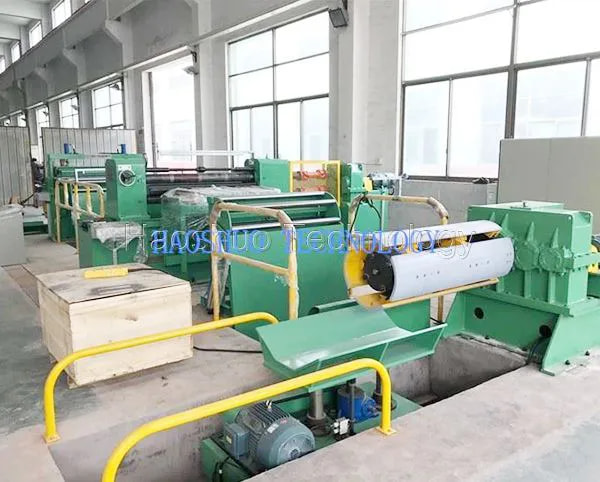

CRGO Silicon Steel Slitting Line
CRGO Silicon Steel Slitting Line
The line is especially for silicon steel (CRGO) coil longitudinal slitting. The wide coil (1000/1250mm) shall be opened and cut into required width strips and then rewinded into rolled coil. The main working flow is coil loading – decoiling – guiding – slitting – tensioning – recoiling – discharging.
Main Line Components:
● Coil car for coil loading
● Hydraulic DC powered decoiler
● Coil sheet feeding system
● Slitter (VF speed controlling)
● Tensioning system
● Hydraulic DC powered recoiler
● Coil car for discharging
● Controlling cabinet
Machine Features:
DC driving for slitting and recoiling
PLC automatic controlling, VF speed adjusting
High quality alloy blade for precision working
International famous brand Electrical and Pneumatic elements
Model
ZJX1000
ZJX1250
Coil thickness
0.23-0.5mm
0.23-0.5mm
Max width of coil
1000mm
1250mm
Slitting speed
0-60m/min
0-60m/min
Slit width
Min 40mm
Min 40mm
Width precision
±0.1mm
±0.1mm
Edge linear straightness
±0.1mm/m
±0.1mm/m
Strip burr
Less than 0.02mm
Less than 0.02mm
Coil weight
5 / 8 / 10 tons
5 / 8 / 10 tons
