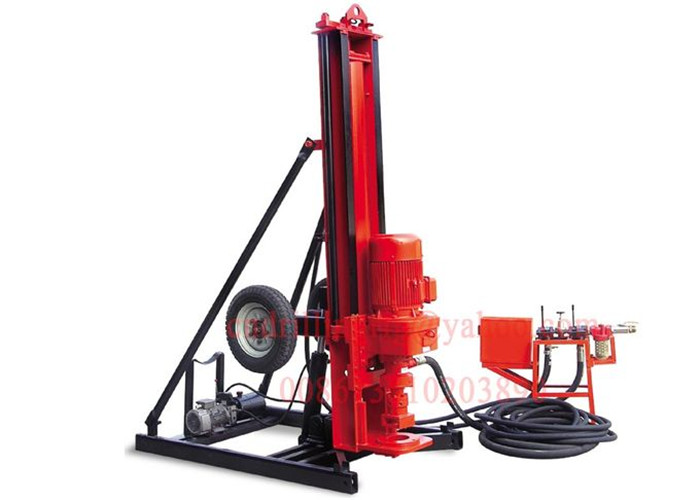

DM100A Pneumatic Powered Rock Drilling Rig
DM100A Pneumatic Powered Rock Drilling Rig
The rock blasting drilling rig DM100A/B is high powered with easy operation system. The pneumatic drill could be applied in open mine, water and electricity projects, railway and highway construction project. Within rock hardness range f=8-16,the quarry drilling machine can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes.The construction drilling equipment DM100A/B is really a gear helping hands for you to improve efficiency.
MODEL
DM100A
DM100B
Air pressure(Mpa)
0.5-0.7
0.5-0.7
Hole diameter(mm)
75-130
75-130
Air consumption(m3/min)
9-17
6-12
Hole depth(m)
20
20
Feed Stroke(m)
1
1
Lifting power(N)
600
600
Rotation Speed(r/min)
0-80
110
Rock hardness
f=8-16
f=8-16
Drive mode
Wind motor
Motor(Electricity)
Rated power(kw)
4
4
Drill pipe
φ50×1m
φ50×1m
Size
2700×450×630
2700×420×610
Weight(kg)
245
300
