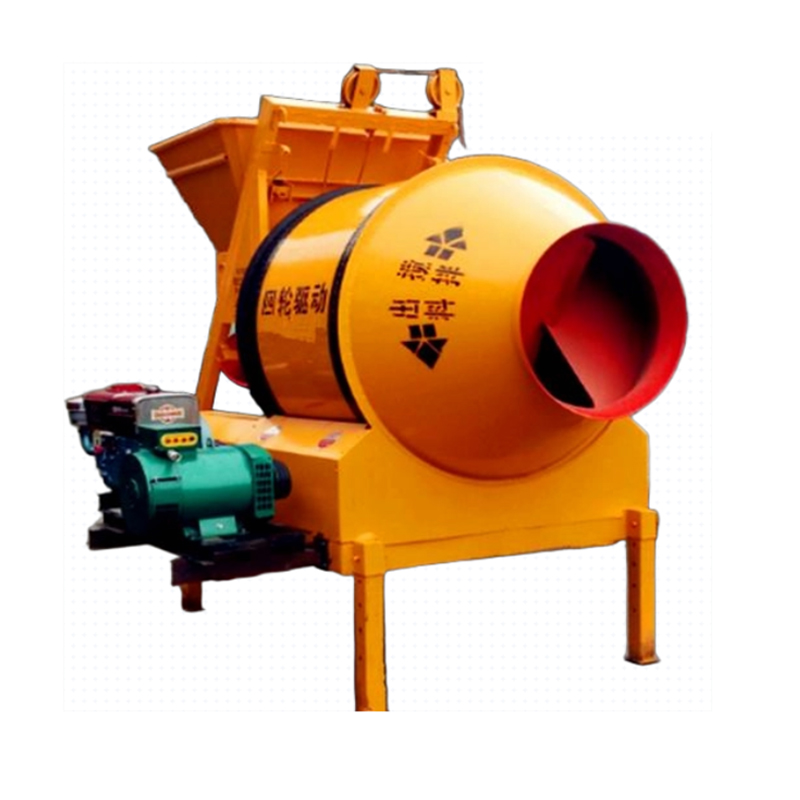

JZM Series 350/500 Diesel – Powered Bucket Concrete Mortar Mixer

JZM250 / JZM350 / JZM500 Diesel Concrete Mixer with Bucket Feeding

The JZM diesel concrete mixer is a diesel-powered reversible drum mixer for small and medium construction projects where grid electricity is unavailable or inconvenient. Available JZM250, JZM350 and JZM500 models combine bucket feeding, rubber-wheel friction transmission and forward-mixing/reverse-discharge operation.

This diesel reversible drum concrete mixer is suitable for plastic and semi-dry hard concrete and is commonly used for rural roads, municipal maintenance, small bridges, residential construction, factory foundations and precast production.

View more Reversible Drum Concrete Mixers or browse the complete Concrete Drum Mixer range.

Key Features

Diesel-Powered Operation

Independent diesel power supports operation on remote jobsites and projects without reliable electricity.

Bucket Feeding

Hydraulic or manual feeding simplifies material loading and reduces repeated manual handling.

Rubber-Wheel Drive

JZM mixers use rubber-wheel friction transmission for smooth drum operation and relatively low operating noise.

Reversible Drum Mixing

Forward rotation mixes the concrete and reverse rotation discharges the finished batch for simple on-site operation.

JZM250 vs JZM350 vs JZM500

Specification

JZM250-DR/-DH

JZM350-DR/-DH

JZM500-DR/-DH

Discharge Capacity

250L

350L

500L

Feed Capacity

320L

560L

800L

Productivity

6–8 m³/h

10–14 m³/h

18–20 m³/h

Drum Speed

17 r/min

14 r/min

13 r/min

Maximum Aggregate Size

60 mm

60–80 mm

Water Supply Accuracy

Error ≤2%

Water Pump Motor

0.55 kW

0.75 kW

1.1 kW

Feeding Method

Hydraulic / Manual

Diesel Engine

15 hp

20 hp

25 hp

Tire Specification

6.50-16

7.50-16

Maximum Towing Speed

20 km/h

Overall Dimensions

2600 × 2100 × 3000 mm

2700 × 2200 × 3000 mm

2900 × 2300 × 3000 mm

Total Weight

Approx. 1700 kg

Approx. 1800 kg

Approx. 2000 kg

Which JZM Diesel Concrete Mixer Should You Choose?

Model

Recommended Use

Key Reason to Select

JZM250

Small repair work, rural construction and light concrete jobs

Compact 250L batch size with 6–8 m³/h productivity

JZM350

Residential construction, rural roads and small contractor projects

Balanced 350L capacity and 10–14 m³/h output

JZM500

Road, municipal and medium-sized construction projects

500L discharge capacity with 18–20 m³/h productivity

The JZM250 diesel concrete mixer suits lighter mixing demand, the JZM350 provides a balanced configuration for general small construction, while the JZM500 diesel concrete mixer provides greater batch capacity for higher-volume site work.
