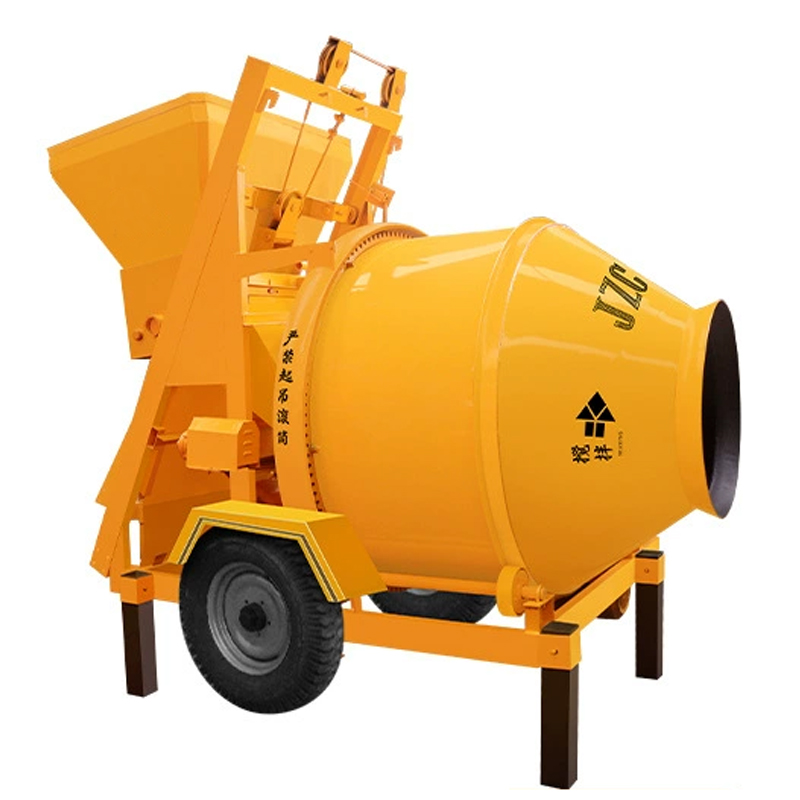

JZC250/350/500/750 Electric Concrete Mixer with Hopper
JZC250/350/500/750 Electric Concrete Mixer with Climbing Bucket
The JZC electric concrete mixer is an electric reversible drum mixer with automatic climbing bucket feeding for small and medium construction projects. Available in JZC250, JZC350, JZC500 and JZC750 models, it combines gear transmission, electric bucket lifting and forward-mixing/reverse-discharge operation.
This electric reversible drum concrete mixer is suitable for plastic and semi-dry hard concrete. The climbing bucket speeds up material loading, while the integrated electric control system simplifies daily operation.
View more Reversible Drum Concrete Mixers or browse the complete Concrete Drum Mixer range.
Key Features of the JZC Electric Concrete Mixer
Automatic Climbing Bucket
The lifting bucket provides fast and convenient aggregate feeding and helps reduce repeated manual material handling.
Gear Transmission
The JZC series uses gear transmission for reliable drum rotation and stable operation on construction sites.
Electric Control
An integrated electronic control system manages mixing and bucket lifting for straightforward daily operation.
Reversible Drum Mixing
Forward rotation mixes the concrete, while reverse rotation discharges the finished batch quickly and conveniently.
JZC250 vs JZC350 vs JZC500 vs JZC750
Specification
JZC250
JZC350
JZC500
JZC750
Discharge Capacity
250L
350L
500L
750L
Feed Capacity
320L
560L
800L
1200L
Productivity
6–8 m³/h
10–14 m³/h
18–20 m³/h
20–22 m³/h
Drum Speed
17 r/min
14 r/min
13 r/min
13 r/min
Max. Aggregate Size
60 mm
60 mm
60–80 mm
60–80 mm
Water Supply Accuracy
≤2%
≤2%
≤2%
≤2%
Mixing Motor
4 kW
5.5 kW
7.5 kW
15 kW
Lifting Motor
4 kW
4.5 kW
5.5 kW
7.5 kW
Water Pump Motor
0.55 kW
0.75 kW
1.1 kW
1.1 kW
Tire Specification
6.50-16
6.50-16
7.50-16
7.50-16
Maximum Towing Speed
20 km/h
20 km/h
20 km/h
20 km/h
Overall Dimensions
2400 × 1800 × 2700 mm
2900 × 1800 × 2700 mm
3000 × 1900 × 2900 mm
3200 × 2000 × 3000 mm
Total Weight
1100 kg
1200 kg
1600 kg
2300 kg
