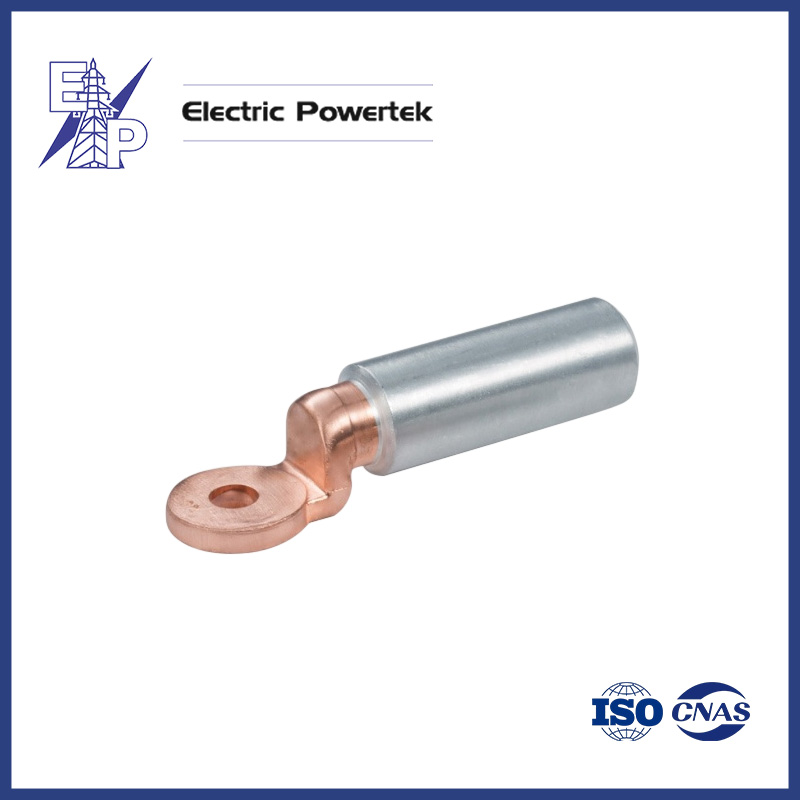

DTL-2 Bimetal Terminal Connector Cable Lug

DTL-2 Bimetal Terminal Connector Cable Lug

Product Description

Material: E-Cu; A1-99.6%

Surface treatment: Bright

Products property: Due to the coupling effect when Aluminium comes in contact with Copper, corrosion will happen in a short time. Currently the best solution is to use Aluminium-Copper bi-metal connectors.A Cable Lug should be used for termination. The friction welding is well done. And its barrel capped is filled with joint compound to avoid oxidization. The type is follow IEC 61238-1.

Type A（mm)

P±0.3

D±0.5

d±0.3

L±3

L1±0.3

W±0.5

S±0.3

   DTL-2-16-11

Φ11

Φ16

Φ6

80

40

Φ20

3

DTL-2-25-11

Φ11

Φ16

Φ7

80

40

Φ20

3

DTL-2-35-11

Φ11

Φ16

Φ8.5

80

40

Φ20

3

DTL-2-50-13

Φ13

Φ20

Φ10

90

43

Φ25

4.5

DTL-2-70-13

Φ13

Φ20

Φ11.5

90

43

Φ25

4.5

DTL-2-95-13

Φ13

Φ20

Φ13.5

90

43

Φ25

4.5

DTL-2-120-13

Φ13

Φ25

Φ15

115

59

Φ30

5.5

DTL-2-150-13

Φ13

Φ25

Φ16.5

115

59

Φ30

5.5

DTL-2-185-13

Φ13

Φ32

Φ18.5

122

60

Φ30

6

DTL-2-240-13

Φ13

Φ32

Φ21

122

60

Φ35

6
