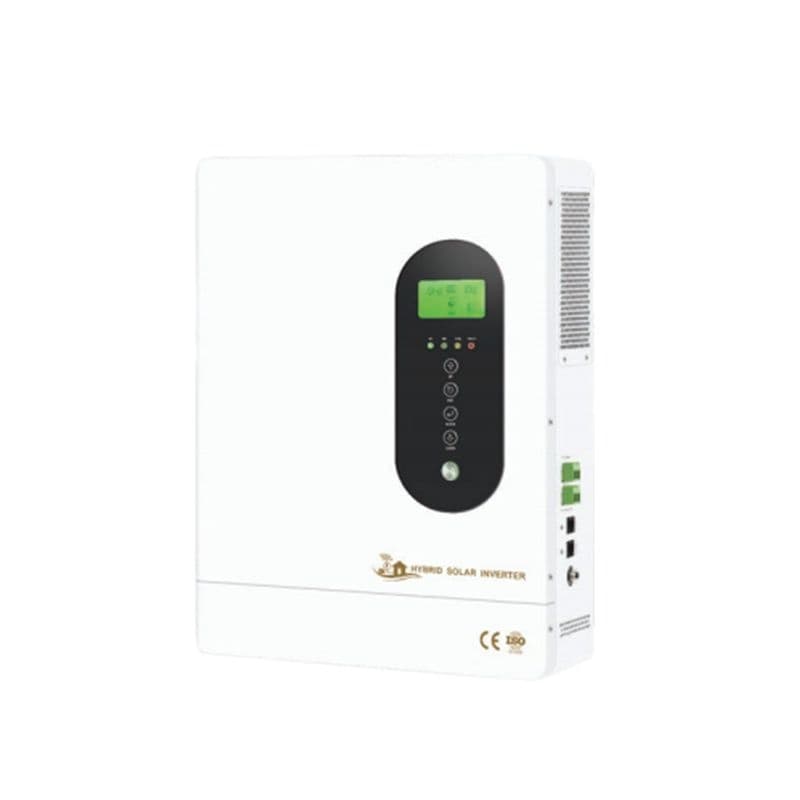

HF series on off grid hybrid solar inverter

Adopting high-frequency design, high power density, small size and high overall efficiency;

Bidirectional energy storage design can realize bidirectional flow control of electric energy, and both photovoltaic and mains power can charge the battery;

Ultra-wide MPPT range, as low as 80Vdc;

The HF series on off grid hybrid solar inverter working mode can be set (on-grid mode, off-grid mode, hybrid mode);

Equipped with output priority setting function;

With charging priority setting function;

Equipped with lithium battery BMS communication function;

Support battery-less operation mode;

Supports the use of smart meters to prevent back flow when running on the grid.

Technical Parameters

Off-Grid Operation (AC Input)

Rated input Voltage:220V/230V/240V

Mains Input Voltage Range:165Vac~280Vac/120Vac~280Vac(can be set)

Rated Input Frequency:50Hz/60Hz

Input Frequency Range:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)

Mixed Operation (Complementary Mode (AC Input))

Rated Input Voltage:220V/230V/240V

Mains Input Voltage Range:187Vac~264Vac

Rated Input Frequency:50Hz /60Hz

Input Frequency Range:47Hz~52Hz(50Hz)，57Hz~62Hz(60Hz)

Yijia is a leading manufacturer of Solar On-Grid Inverters, providing high-efficiency, reliable inverters for residential, commercial, and industrial solar projects. Our on-grid inverters are designed for bulk procurement, delivering stable energy conversion, grid compliance, and high efficiency for large-scale solar installations.
