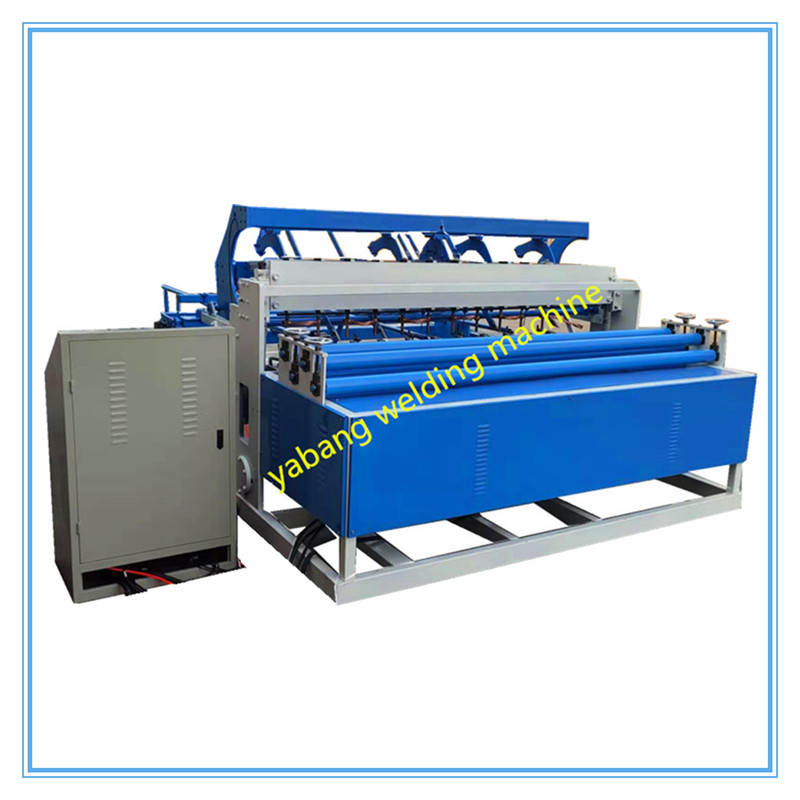

3-6mm Automatic Fence Mesh Welding Machine
The 3-6mm Automatic Fence Mesh Welding Machine is a special equipment for welding metal mesh, which is widely used in construction, mining, animal husbandry, manufacturing and other fields.
Main parameters:
Type
YB-1500B
YB-2500B
YB-3000B
Numble of Eelectrodes
31
48
61
Max.Mesh Width
1500mm
3000mm
3300mm
Wire Diameter
3-6mm
3-6mm
3-6mm
Mesh Length
3-12m
3-12m
3-12m
Cross Wire Space
100-300mm
100-300mm
100-300mm
Line Wire Space
100-300mm
100-300mm
100-300mm
Electric Capacity
125KVA*4
125KVA*6
125KVA*10
Welding Speed
40-65t/min
40-65t/min
40-65t/min
Control System
PLC control
PLC control
PLC control
Function features and advantages:
1.This Wire Mesh Welding Machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, separate welding. Surely,if the power supply is enough big,it can also adopt the welding at the same time.
2.Line wires adopt per-cut wires,line wires are put by hand based on the positioning device,then automatic tightening and send the down electrodes by sending line wires car installed with the step motor; When the mesh is being welded, line wires of the next mesh can be placed, which greatly shortens the working interval time of the machine.
3. Cross wires also adopt pre-cut wires,the cross wire hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of the device from the large storing hopper(storage up to 1000kg),it is installed in the removable pulling mesh rack,very convenient to adjust and maintain.
