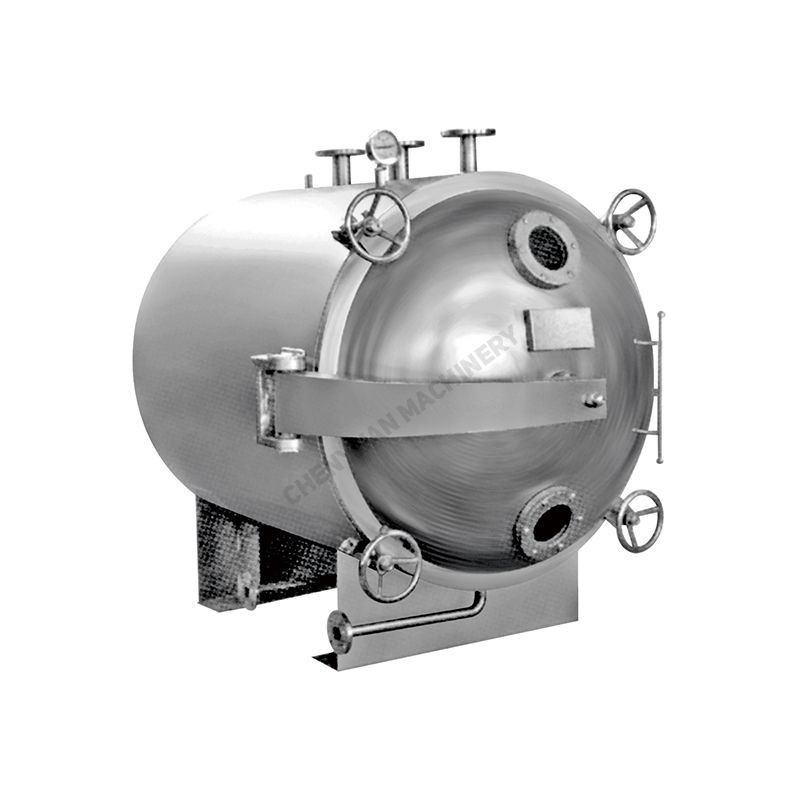

FZG/YZG Vacuum Dryer
YZG Vacuum Dryer is suitable for low temperature drying of heat sensitive materials that are easy to decompose, agglomerate and deteriorate at high temperatures. It is widely used in such industries as medicine, chemical industry, food, electronics, etc.
Vacuum drying means to heat the materials to be dried under vacuum conditions. If a vacuum pump is used for air evacuation and humidity removal, the drying speed will be increased.
Note: If a condenser is adopted, the solvent in the materials can be recovered through the condenser. It the SK series water loop vacuum pump is adopted, there is no need to use the condenser, so that energy is saved.
Technical Parameter
Model
YZG-600
YZG-800
YZG-1000
YZG-1400
FZG-10
FZG-15
FZG-20
Dimensions inside the drying oven(mm)
Φ600*976
φ800*1247
φ1000*1527
Φ1400*2054
1500*1060*1220
1500*1400*1220
1500*1800*1220
Dimensions outside the drying oven(mm)
1135*810*1020
1700*1045*1335
1693*1190*1500
2380*1675*1920
1924*1720*1513
1924*2060*1513
1924*2500*1513
Drying frame layer quantity
4
4
6
8
5
8
12
Distance between layers(mm)
81
82
102
102
122
122
122
Drying disc size(mm)
310×600×45
520×410×45
520×410×45
460×640×45
460×640×45
460×640×45
460×640×45
Drying disc quantity
4
8
12
32
20
32
48
Working pressure in the drying frame pipe
≤0.784
≤0.784
≤0.784
≤0.784
≤0.784
≤0.784
≤0.784
Drying frame working temperature
35～150
35～150
35～150
35～150
35～150
35～150
35～150
Vacuum degree under idle load in the oven
-0.1
-0.1
-0.1
-0.1
-0.1
-0.1
-0.1
Water vaporization rate at -0.1MPa and heating temperature 110℃
7.2
7.2
7.2
7.2
7.2
7.2
7.2
Vacuum pump model and power when a condenser is adopted
2X-15A 2KW
2X-30A 3KW
2X-30A 3KW
2X-70A 5.5KW
2X-70A 5.5KW
2X-70A5.5KW
2X-90A 2KW
Vacuum pump model and power when no condenser is adopted
SZ-0.51.5KW
SZ-12.2KW
SZ-12.2KW
SZ-12.2KW
SZ-24KW
SZ-24KW
SZ-25.5KW
Drying oven weight
250
600
800
1400
1400
2100
3200
