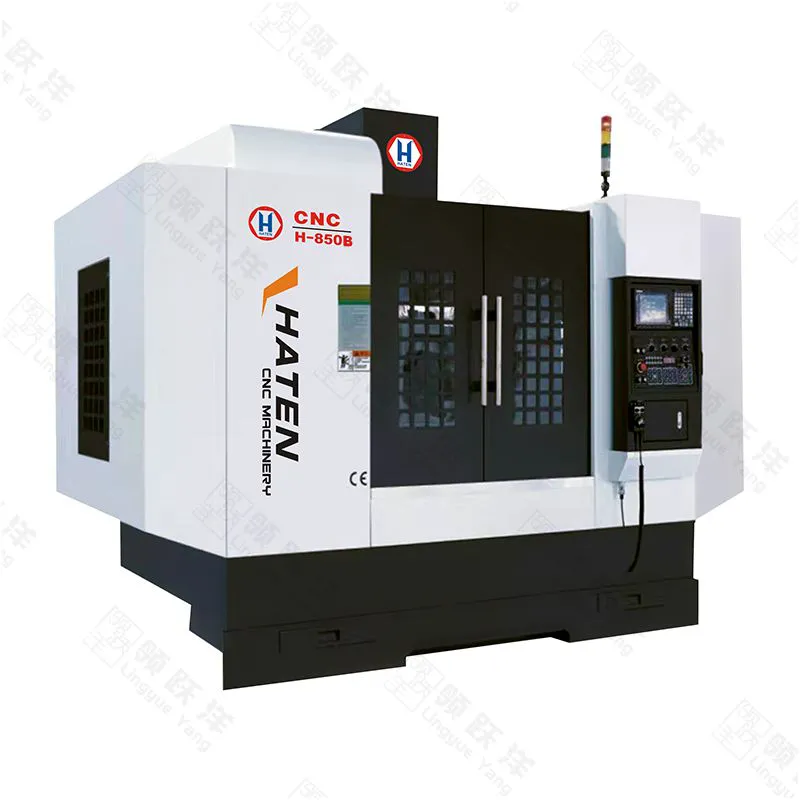

H-850B Hard Way Machining Center

The main castings of the machine are made of resin sand cast iron with stable material to ensure the long-term accuracy and service life of the machine.

The column is a double wall structure, which greatly improves the mechanical rigidity.

All slideway surfaces are precisely ground and covered with turcite-b wear-resistant sheet, which is matched with precision cutting.

The guide rail design is adopted between the z-axis counterweight and the column to prevent the counterweight from colliding with the column when the z-axis moves rapidly.

The three-axis adopts the precise ball (roller) screw, which is directly driven by the servo motor, without backlash error.
