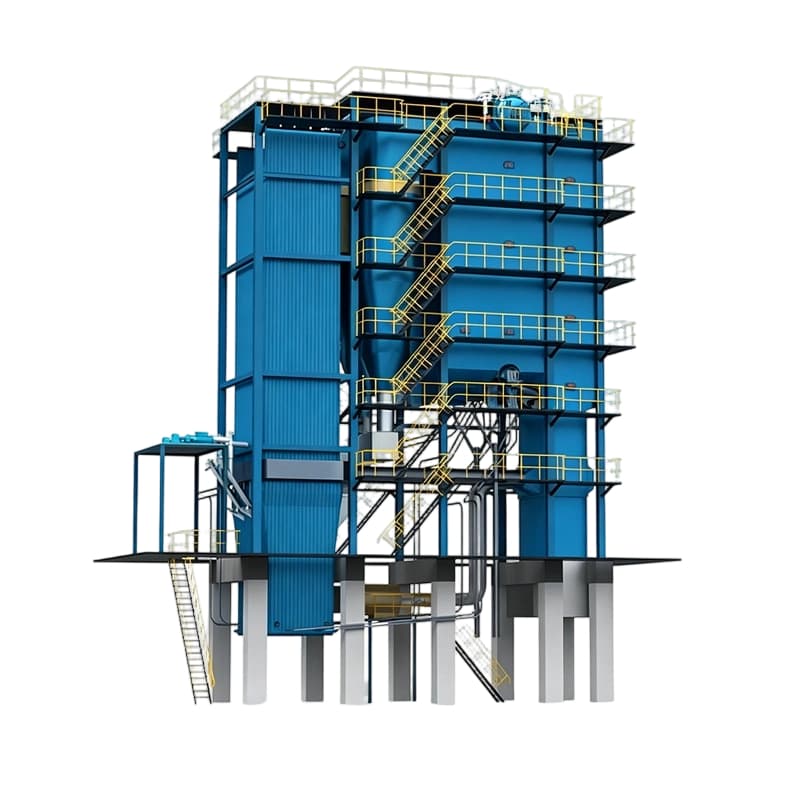

SHX Series Circulating Fluidized Bed Steam Boiler
Capacity: 10-35 t/hWorking pressure: 1.25-2.5 MPaOperating temperature: 194-400 ℃Applicable to bituminous coal, anthracite, lean coal, coal gangue, sludge, biomass, etc.Application industries: chemical, pharmaceutical, food, papermaking, printing and dyeing, tobacco, feed, building materials, brewing, rubber, heating, hospitals, etc.
Performance advantages
The SHX series circulating fluidized bed steam boiler adopts a double-drum horizontal structure, with its core consisting of a large furnace, a high-efficiency high-temperature cyclone separator, and a bell-shaped wind cap. Its advantages are significant: extremely wide fuel adaptability, capable of efficiently burning various fuels such as coal, gangue, biomass, and even sewage sludge; outstanding environmental performance, through low-temperature staged combustion and in-furnace desulfurization, it can directly control nitrogen oxide emissions below 100mg/Nm³; high thermal efficiency, with the cyclone separator achieving a separation efficiency of over 98% enabling multiple cycles of fuel combustion, combined with the large furnace and low-flow-rate design, resulting in more complete combustion; and a wide load adjustment range and stable operation, capable of stable operation at a minimum of 30% load, effectively meeting diverse steam demand from users.
A circulating fluidized bed boiler uses high-speed airflow to suspend and circulate fuel particles inside the combustion chamber, creating a highly mixed combustion environment.
The circulating process helps achieve:
Better fuel-air contact
Longer combustion residence time
Improved combustion efficiency
More stable heat release
