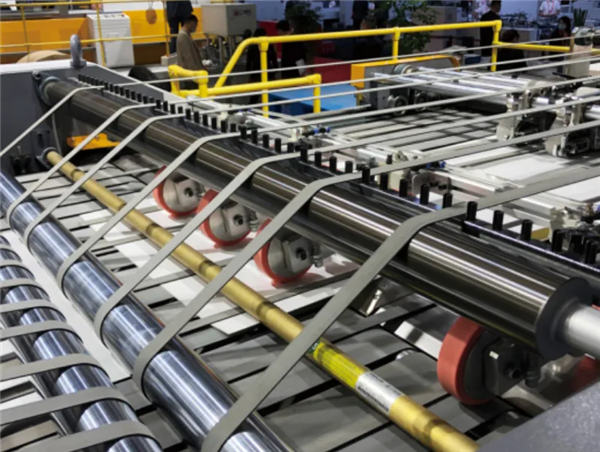

HSC Paper Sheeting Machine
HSC Paper Sheeting Machine incorporates an advanced synchronous rotary design, driven by high-power AC servo motors for exceptional precision and clean cutting performance. Featuring our patented embedded cutting head technology, it delivers perfectly straight cross-sections without fiber pull-out, effectively eliminating paper hairs—a critical advantage for superior cut quality. This high-performance machine is ideal for processing a wide range of materials including cardboard, coated paper, kraft paper, cultural paper, art paper, duplex board, and packaging paper, with a maximum capacity of 1000gsm.
Main Characteristics
Paper Sheeting Machine features an advanced synchronous rotary system, powered by high-torque AC servo motors to deliver precision cutting with exceptional accuracy and clean edges (±0.05mm tolerance).
Equipped with our patented embedded cutting head technology, it produces perfectly straight cuts without fiber pull-out, effectively eliminating paper hairs—critical for high-end packaging. It handles diverse materials including cardboard, coated paper, kraft paper, and specialty stocks up to 1000gsm.
We specializes in premium sheet cutters, trusted by leading cosmetics and pharmaceutical packaging brands worldwide. Our machines ensure zero operational risk and long-term reliability, helping you enhance product quality, reduce costs, and boost efficiency in high-volume production.
Parameter Table
Model
HSC-1500SS/1700SS/1900SS
Type of cutting
Twin knife, Top blade and bottom blade rotary cutting
Paper weight range
150-1000 GSM
Reel stand load capacity:
2.5T (option 3T-4T)
Reel diameter
Max 1800mm (71″)
Cutting Width
Max 1500/1700/1900mm (66.9″)
Cut off length range
Min.400-Max.1650 mm
Cutting accuracy
±0.15mm
Max. Speed of cutting
400cuts/min
Max. Cutting speed
300m/min
Delivery height
1700mm(incl.pallet)
