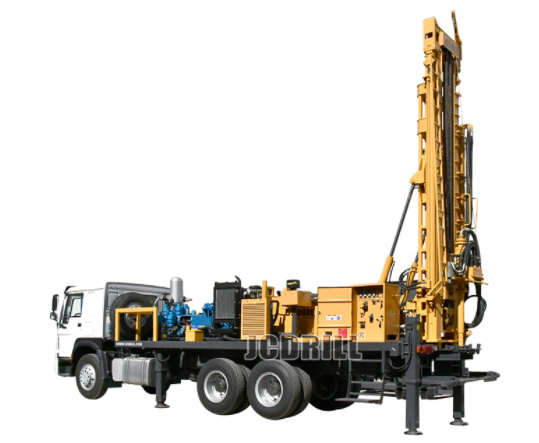

Borehole Truck Water Well Drill Machine with Air Compressor for Sale

Model:CSD800

Chassis:6X4,8X4

Max. Drilling depth:800m

Drilling Method:Air Drilling & Mud Drilling

>> Application

CSD800 truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.

Truck mounted water well drilling rig is designed by our professional engineers with the advanced technology concept and it is a hydraulic rotary drilling rig. The truck chassis adopts the special crane chassis and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis. This rig is a rotary drilling rig with directional circulation and It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit. The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

>> Characteristics

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>>Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>>The truck chassis adopts the 6X4,8X4 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

>>It’s a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>>The power of drilling rig comes from a diesel engine, 76Hp Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>>The rotary head, rotation speed is 0-100rpm stepless adjustment and the rotary torque is 4000-4800Nm.

>>The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>>It can set up a generator which is convenient to welding or illuminate for work at night.

>>Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>>The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>>The tools winch winch is used for auxiliary lifting and casing, optional main winch force of 1.5T, rope length of 40m.

>>The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

>> Specification

Item

Spec.

Unit

Parameter

General

Chassis

6X4

8×4

Geology Drilled

All kinds

Drilling Method

DTH & Mud Rotary

Hole Depth

800

Hole Diameter

Φ140—Φ650

Rotation

Rotation Torque

9600 1st Gear

14500 2nd Ger

Rotation Speed

rpm

0-80 1st Gear

0-110 2nd Ger

Feeding System

Drill Pipe Diameter

102/114/127

Drill pipe length

3000/4500/6000

Push down capacity

Pull back capacity

Winch

Lifting force of tool winch

Length of steel wire rope

100

Engine

Diesel Engine type

CUMMINS

Rated power

132

Electrical System

Volt

Compressor

Compressor Type

Rotary Screw/Separate

Pressure Required

Mpa

1.2—3.0

Air consumption

m³/min

11—35

Chassis

Manufacturer

SINOTRUCK

Rated Horse power

400

Discharge Standard

EU-2/EU-3

Drive type

6*4

8*4

Max. Speed

Km/h

102.9

Steering wheel

left/right(Optional)

Mud Pump

Model

BW850/5

Displacement

L/Min

850

Discharge pressure (Mpa)

Mpa

Generator

Optional

Engine or hydraulic Driven

Dimension&Weight

Net Weight

Kgs

22000

Shipping （L*W*H）

10800*2550*3650

11000*2550*3650

Working size（L*W*H）

11000*2550*9800

11500*2550*9800

All truck brand & Engine brand available according to your requests!
