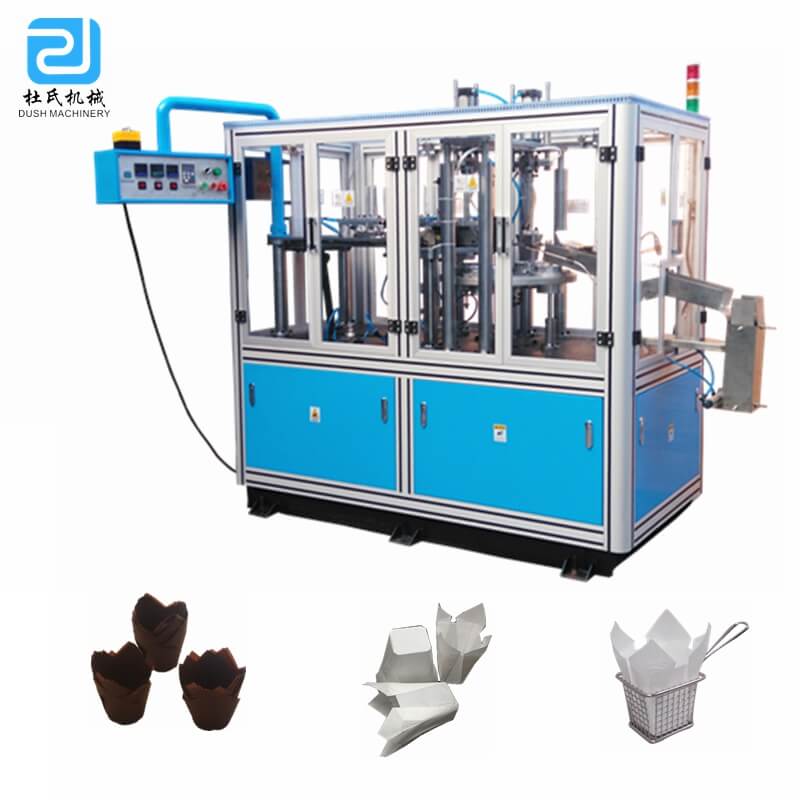

DS-JE Automatic Paper Tulip Baking Cup Machine
Advantanges:
Automatic paper pickingAutomatic paper feedingAutomatic paper shaping
Size:
Accept customized shape & size
DESCRIPTION
The Tulip Baking Cup Making Machine is a newly designed device with multi-position running, revolutionizing the historical practice of hand-making baking cups. Equipped with a robotic arm, it automates processes such as paper clipping, separation, punching, and discharging, making it an ideal solution for producing baking cups. The machine enables the production of different-sized baking cups by simply changing the molds.
TECHNICAL DATA
Suitable Size
Regular size
Raw Material
30-120gsm grease-proof or paper PE coated paper,etc
Ration Productivity
30-35pcs/min
Total power
4.5 KW
Air Pressure/Air Flow
0.8-1.0 m3/min, >0.6mpa(need to buy an air compressor)
N.W./G.W.
1400kg/1500kg
Electric Power
220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type
Overall Dimension
1900L*1030W*1900H(mm)
A powerful assistant for paper cup manufacturers–Paper Baking Cup Machine
We can provide Paper Baking Cup Machine with high production efficiency for paper cup manufacturers, and offer you:
cake cup machine
cake tray machine
AIR fyrer paper liner machine
basque baking cup machine
Tulip Baking Cup Making Machine
