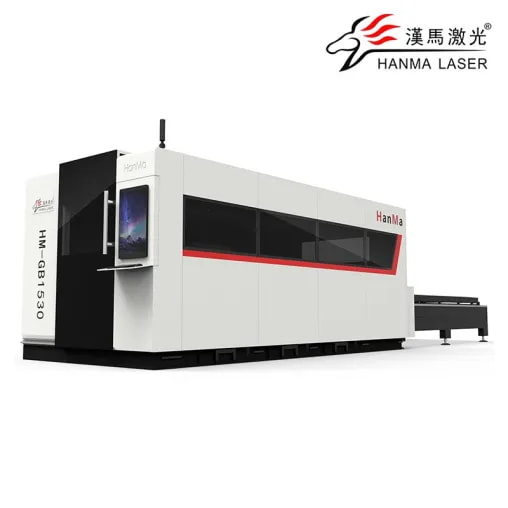

HM-GB-VI Series Enclosed Double Platform Fiber Laser Cutting Machine
Equipment Advantages
Heavily insulated bed
The whole machine adopts a weighting process to meet the load-bearing requirements of larger boards. The entire series of bed bodies are equipped with anti burning boards as standard, which are durable and provide strong support for customers to cut in batches/stably for a long time！
Intelligent partition ventilation
New partition ventilation, dust removal and exhaust system with positive pressure protection for cutting heads, strong smoke exhaust and efficient dust removal! To achieve cleaner factory buildings and optimize the environment
Waste oil recovery tank
New design of waste oil collection tank to keep the bed and working environment clean and tidy
Cutting range: 0~25mm (depending on the material and laser power)
Equipment Configuration List
Name
Brand
Note
Laser generator
Han Ma Customization
Ultra long lifespan, efficient and safe
control software
Intelligent software, simple and easy to operate
Laser precision cutting head
Intelligent constant temperature, monitoring
Precision gear and rack
Grinding grade rack, high precision, long service life
Precision linear guide rail
Dust proof steel belt guide rail, high precision, high strength
Precision planetary reducer X, Y-axis
High precision, high hardness, silent
AC servo motor and driver
Fast response, high precision, and long lifespan
High pressure solenoid valve
High volume solenoid valve, ultra fast response
Han Ma Bed
Durable rack for 10 years without deformation
Water Chiller
Intelligent dual temperature and dual control constant temperature cooling system
1. If the purchaser purchases the above configuration themselves, the brand and model specified in the procurement table should be purchased. Otherwise, the purchaser is responsible for any adverse effects on the overall performance of the machine. 2. Due to government policies or market supply cycles, the supplier reserves the right to replace the configuration with other brands of the same quality
Technical Parameter
Processing format (width x length)
1500mm×3000mm
Laser power
1500W-6000W
Repetitive positioning precision of X/Y axis
±0.05mm
Maximum linkage speed
﹤140m/min
Maximum linkage acceleration
≤1.8G
Overall weight
﹥3.0T
Worktable load capacity
≈3000KG
Number of phases
3
Rated voltage of power source
380V
Frequency
50Hz
Whole machine power
≤42kw（Depends on laser power）
Protection rating of main power
IP54
Dimensions-Single machine（L*W*H）
4481mm×2266mm×1743mm
Supporting formats
DXF、DWG、PLT、LXD、CNC、NC、TXT
At HANMA LASER, we design and manufacture high-performance sheet metal cutting machines that empower manufacturers worldwide. Whether you’re cutting stainless steel, carbon steel, or aluminum, our steel cutting laser machines offer exceptional accuracy, speed, and long-term reliability.
Our solutions are trusted by professionals looking for maximum output, minimal rework, and consistent performance – from batch fabrication to intricate custom projects.
Reliable technology.
