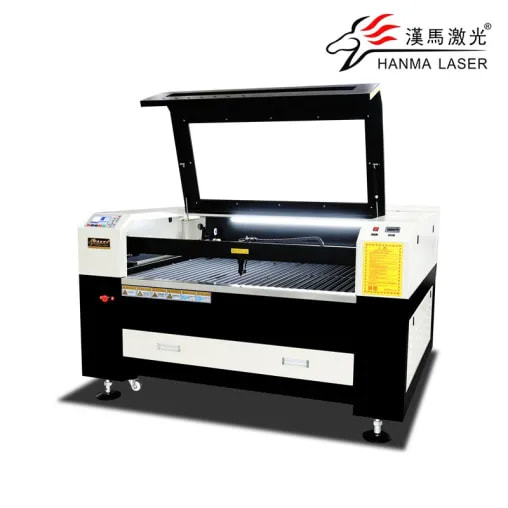

HM-1310 Series Non-metal Laser Engraving and Cutting Machine
HM-1310 Series Non-metal Laser Engraving and Cutting Machine
Equipment Technical Indicators
Technical indicators
Technical Parameters
Maximum laser power
60W-300W
Pulse frequency
1~1000Hz continuously adjustable
Aiming and positioning
Red light indication
Effective processing area
1300*1000mm
X/Y axis repeat positioning accuracy
±0.01mm
Fastest engraving speed
40000mm/min
Fastest cutting speed
18m/min
Maximum engraving depth (wooden board)
2mm
Maximum cutting thickness (wooden board)
25mm
Minimum format text
Chinese characters 2mm/English 1mm
Supported graphics formats
DXF, etc. (support AutouCAD software, Coreldraw software)
Power supply requirements
220V, 50Hz, 60A
Host size (LxWxH)
1850x1650x1050mm
Machine weight
400KG (approximately)
As a leading manufacturer in laser technology, HANMA LASER provides cutting-edge Non-metal laser engraving and cutting machines designed for high precision, flexibility, and efficiency. Whether you’re cutting textiles, acrylic, wood, leather, or paper, our systems offer seamless integration of engraving and cutting in one platform.
Trusted by designers, manufacturers, and distributorsIdeal for industrial production or creative processingEngineered for precision, built for reliability
