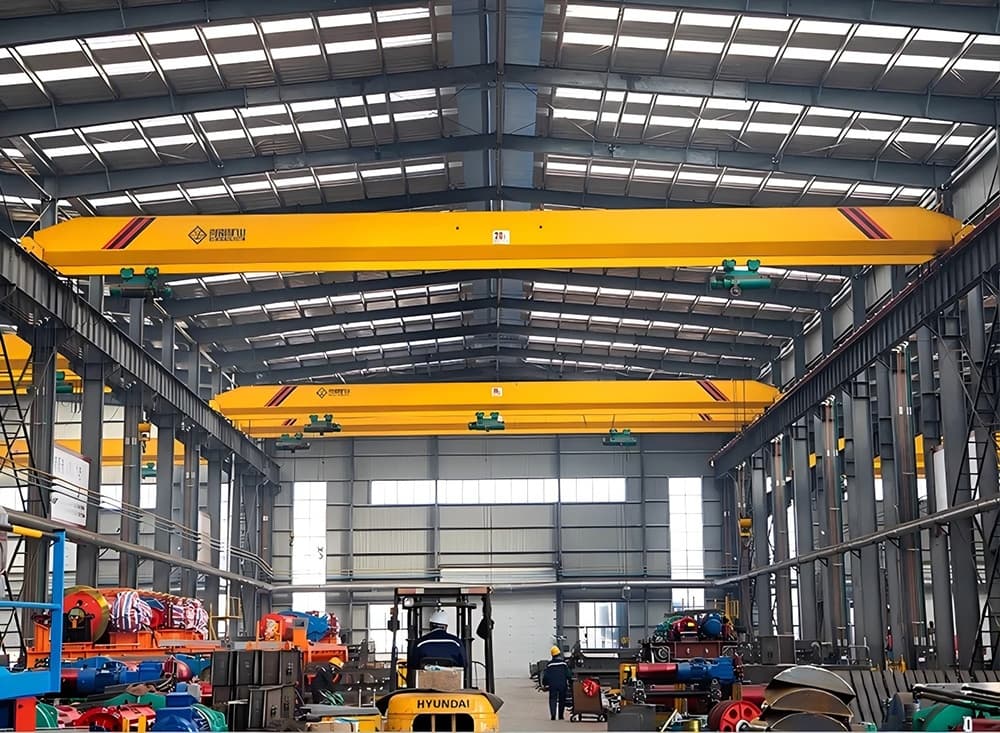

LD Single Girder Overhead Crane With CD/MD Electric Hoist
The crane girder is made from high quality I-beam steel and a precision-formed U-shaped channel. The end girders are welded from rectangular steel tubes or high-grade steel.With its compact, well-designed structure and high-quality steel construction, the crane guarantees smooth operation, efficient braking, and a long service life.
Customizable for specialized applications, Henan Mine Crane provide tailored solutions to meet specific needs.
Features
Single girder with top running configuration makes it suitable for a variety of industrial environments
High-quality I-beam steel serving as the running track for the electric hoist enhances its durability and smooth operation
Hoist: CD or MD with wire rope or electric chain hoist
The hoist and main beam mechanisms can be controlled either independently or synchronously: improves efficiency and safety in handling complex loads
Cable available in open or closed styles, with installation on either the left or right side:enhances the crane’s adaptability to different workspace configurations
Operation modes: Pendant control or remote control
Tecnical Specifications
Lifting capacity
Up to 32 tons
Lifting height
Tailored
Span
≤31.5m or tailored
Rated voltage:
220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
Working class
A3.A4
Temperature
Standard temperature: -20°C … +40°C.
Protection
IP44/IP54
Crane type
Single girder, top-running
Girder design
high-quality I-steel and U-shaped groove
Rope
steel wire rope default ,chain option
Hoisting motor
Lifting: single-speed or double speedTravelling: single-speed
Paint
One coat of primer and two coats of topcoat, total thickness exceeding 105µm
