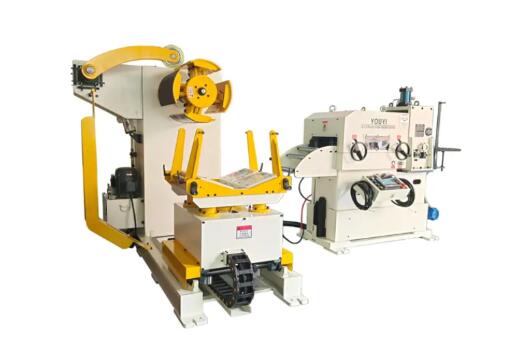

3 in1 Decoiler Leveler Feeder For Thin Plate（0.3-3.2mm）
The 3-in-1 servo feeder integrates four functions—uncoiling, leveling, feeding, and shearing—into a fully automated system.
Material width(mm): 50-1000
Material thickness(mm): 0.3-3.2
Coi. weight(kg): 3000/5000/7000
3 In 1 Coil Feed Line characteristics
The 3-in-1 servo feeder integrates four functions—uncoiling, leveling, feeding, and shearing—into a fully automated system. Designed with advanced technology, high precision, and efficiency, it is specialized for processing high-yield-strength metal coils.
Straightening and Feeding Rollers: Made from bearing steel (equivalent to Japanese SUJ2), treated with heat treatment, quenching, hard chrome plating, precision grinding, and hardened to HRC 60+.
User-Friendly Operation: Equipped with a color LCD control panel, large touchscreen, and intuitive high-definition interface. Integrated safety protection systems ensure ease of operation even for first-time users.
Labor and Time Efficiency: Combines loading, material guiding, bending, leveling, feeding, and coil change into one machine. A single operator can complete all tasks via the centralized control panel, significantly reducing labor costs and workload.
Compact and Precise Design: Youyi Precision‘s innovative structure minimizes the required workspace and shortens material waiting zones. Offers superior feeding accuracy compared to traditional split-type feeders.
