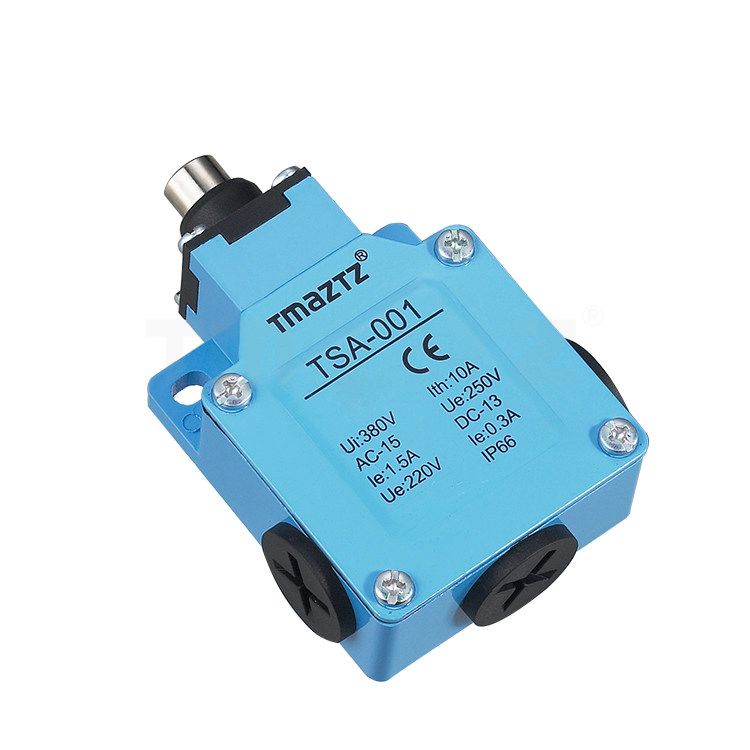

TSA-001 sealed plunger actuator Limit Switch
TSA-001 sealed plunger actuator Limit Switch
■ Stainless steel idler wheel, punch and spring;
■ Selective M18x1.5 cable gland.
Ratings
Rated voltage
Noninductive Load (A)
Inductive Load (A)
Resistance Load
Lamp Load
Inductive Load (A)
Motor Load
NC
NO
NC
NO
NC
NO
NC
NO
125VAC
5
5
1.5
0.7
3
3
2
1
250VAC
5
5
1
0.5
3
3
1.5
0.8
8VDC
5
5
3
3
5
4
3
3
14VDC
5
5
3
3
4
4
3
3
30VDC
5
5
3
3
4
4
3
3
125VDC
0.4
0.4
250VDC
0.2
0.2
Inrush Current
N.C: below 24A, N.O: below 12A
NOTE:
1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
